Overview

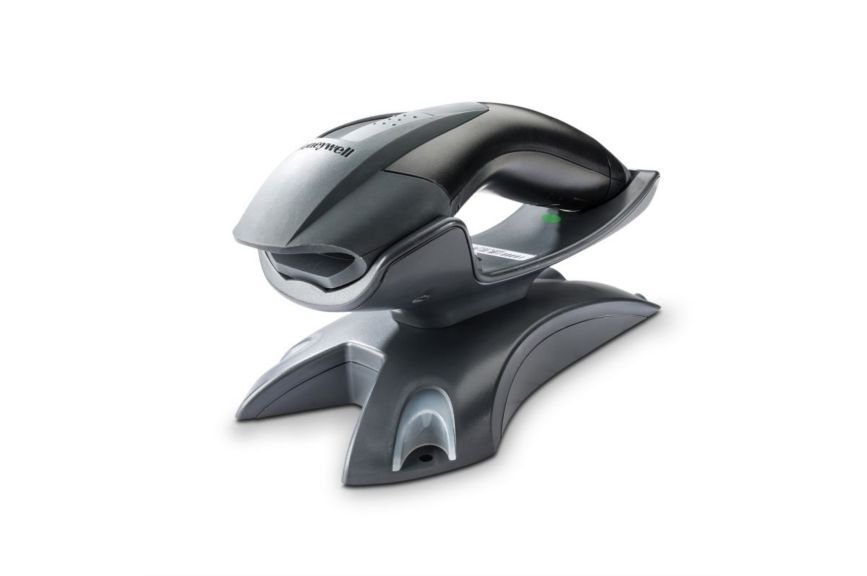

The Voyager 1202g General Duty Scanner by Honeywell is a powerful and versatile wireless laser barcode scanner built on the world’s best-selling single-line laser scanner platform. It is designed to scan virtually all 1D linear barcodes aggressively, including poor-quality and damaged barcodes, making it suitable for various industries such as retail, healthcare, and logistics.

Key Features

• Bluetooth Wireless Technology: The Voyager 1202g features Bluetooth v2.1 for reliable wireless connectivity, enabling scanning of standard 1D barcodes from up to 10 meters (33 feet) away from the base. When there is a clear line of sight, the range extends to 30 meters (100 feet).
• Long Battery Life and Tool-Free Battery Removal: The scanner is equipped with a user-preferred Lithium-ion battery, providing over 12 hours of use per charge, depending on scanning volume. The battery can be quickly and easily replaced without the use of tools.
• Remote MasterMind™ Ready: This feature reduces total cost of ownership by providing a turnkey remote device management solution, allowing businesses to easily manage and track the usage of installed devices.
• Paging Functionality: If the scanner is misplaced, simply press the button on the base to activate a paging system that uses beeps and blinking lights on the scanner’s indicator panel for easy location.
• Automatic Interface Configuration: The Voyager 1202g supports all popular interfaces, enabling automatic detection and configuration, which eliminates the time-consuming process of scanning programming barcodes.

Performance Specifications

• Scanning Technology: 1D Laser with CodeGate™ Technology and Object Detection capabilities for hands-free presentation scanning.
• Scan Pattern: Single scan line.
• Skew Angle: 70°, providing flexibility in scanning various angles.
• Pitch Angle: 60°.
• Depth of Field: 0 to 14.4 inches, allowing for versatile scanning distances.
• Print Contrast: Reads barcodes with as little as 10% print contrast.
• Light Immunity: Capable of scanning in lighting conditions ranging from 0 to 70,000 lux.

Durability and Design

• Shock Resistance: Designed with a single shock-mounted PCB and a recessed button that is protected by an integrated rubber co-mold to minimize the impact of accidental drops. It is rated for 30 drops from 1.5 meters (5 feet) to concrete.
• Scratch-Resistant Glass Window: The scanner window is protected by scratch-resistant glass, ensuring long-term clarity and performance.
• Protection Rating: The device has an IP41 rating, providing protection against dust and water ingress.
• Form Factor: Features a curved ergonomic design for comfortable handheld use.

Connectivity and Interface

• Wireless Connectivity: Bluetooth-enabled, allowing for cordless operation.
• Host System Interfaces Supported: USB, RS-232, KBW, RS-485.
• Aimer Type: LED aimer for precise targeting.

Environmental Specifications

• Operating Temperature: 5°C to 40°C (41°F to 104°F).
• Storage Temperature: -5°C to 35°C (23°F to 95°F).
• Operating Humidity: 0% to 95% non-condensing.

Battery and Electrical

• Battery Type: Uses a supercapacitor for reliable power.
• Battery Life: Offers more than 12 hours of continuous operation on a full charge, depending on the volume of scans.

Warranty and Standards

• Warranty: 3-year warranty covering the device.
• Standards and Approvals: Meets industry standards for quality and performance.

Ideal Use Cases: Retail, healthcare, warehouses, and logistics for inventory management, price checks, and document processing. The Voyager 1202g’s advanced scanning capabilities and wireless flexibility make it suitable for various scanning applications requiring reliability and ease of use.
