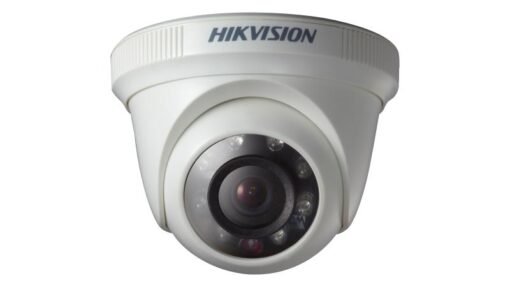

Key Features

• 1 Megapixel High-Performance CMOS Sensor: Captures sharp and clear video with a 1MP CMOS image sensor for reliable surveillance.
• 720P Analog HD Output: Supports up to 720p resolution, delivering high-definition video for monitoring.
• Day/Night Switch: Automatically switches between day mode and night mode based on lighting conditions.
• Digital Noise Reduction (DNR): Reduces noise in low-light conditions to enhance image clarity.
• Smart IR Technology: Adjusts IR intensity to avoid overexposure and improve night vision.
• 20m IR Distance: Provides infrared night vision coverage up to 20 meters (66 feet).
• Switchable TVI/AHD/CVI/CVBS: Compatible with various video output formats, making it suitable for a wide range of security systems.

Image Sensor

• Type: 1 Megapixel CMOS Image Sensor
• Effective Pixels: 1296 (H) × 732 (V)
• Signal System: Supports both PAL and NTSC standards
• Minimum Illumination:
  • 0.01 Lux @ F1.2 with AGC ON
  • 0 Lux with IR activated for complete darkness visibility

Shutter Speed

• Range: 1/25 (1/30) seconds to 1/50,000 seconds, enabling clear capture of fast-moving objects.

Lens Specifications

• Lens Options: 2.8 mm, 3.6 mm, and 6 mm focal lengths available
  • 2.8 mm Lens: 92° field of view for wide-area monitoring
  • 3.6 mm Lens: 70.9° field of view for general surveillance
  • 6 mm Lens: 56.7° field of view for detailed distant monitoring
• Lens Mount: M12 for secure attachment

Day & Night Mode

• IR-Cut Filter Removal (ICR): Automatically switches to black-and-white mode at night for clear images.

Angle Adjustment

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotation: 0° to 360°
• Flexible Mounting: Allows for versatile installation and optimal camera positioning.

Video Output and Quality

• Frame Rate: 720p at 25fps (PAL) or 30fps (NTSC) for smooth playback.
• HD Video Output: 1 analog HD output
• S/N Ratio: Greater than 62 dB for high-quality video with minimal interference.

General Specifications

• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 90% or less (non-condensation)
• Power Supply: 12 V DC ±15%
• Power Consumption: Maximum 4W for energy-efficient operation
• IR Range: Night vision capability up to 20 meters (66 feet)
• Dimensions: 89.9 mm diameter × 70.1 mm length (3.54″ × 2.76″)
• Weight: 250 grams (0.55 lbs)
