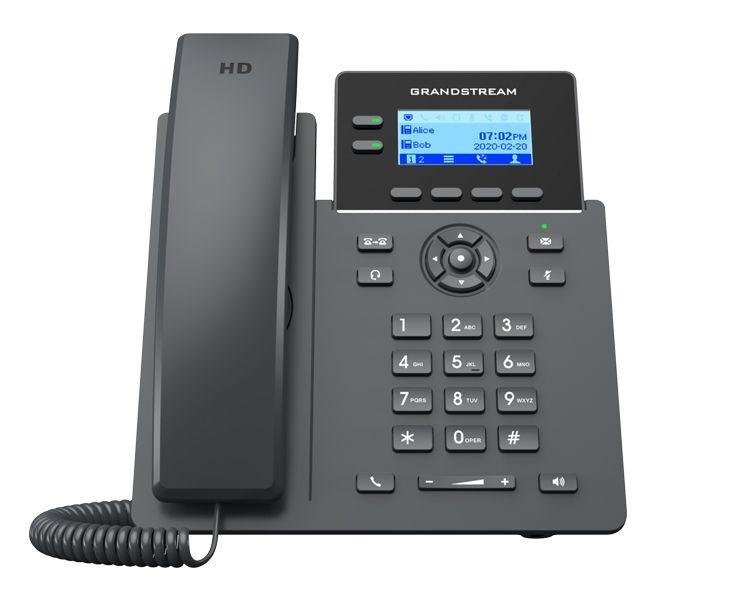

Grandstream GRP2602W 2-Line Essential IP Phone

The Grandstream GRP2602W is a carrier-grade IP phone designed for professional environments requiring reliable voice communication and flexible deployment options. Supporting up to two active lines and four SIP accounts, it offers a user-friendly interface with a 2.21-inch backlit graphical LCD display. The device is equipped with integrated dual-band Wi-Fi, simplifying installation by reducing the need for Ethernet cabling.

Key Features

Multi-Line Support

• 2 active lines and 4 SIP accounts allow for efficient call management and flexibility in handling multiple calls simultaneously.

High-Definition Audio

• Full-duplex speakerphone and HD handset audio ensure clear and natural voice communication.

Integrated Dual-Band Wi-Fi

• Built-in dual-band Wi-Fi (2.4GHz and 5GHz) support simplifies deployment by delivering wireless connectivity without the need for Ethernet cabling.

Advanced Telephony Features

• Supports 5-way conferencing, call park, call pickup, shared-call-appearance (SCA), and bridged-line-appearance (BLA) for enhanced call handling capabilities.

Security and Provisioning

• Features secure boot, dual firmware images, and encrypted data storage to protect against unauthorized access and ensure device integrity.

• Compatible with GDMS (Grandstream Device Management System) for centralized configuration, provisioning, and management.

Customization and Branding

• Swappable faceplate allows for easy customization with company logos and branding.

Technical Specifications

• Display: 2.21-inch (132×48) backlit graphical LCD

• Ethernet Ports: Dual switched auto-sensing 10/100 Mbps Ethernet ports

• Wi-Fi: Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

• Audio Codecs: Supports G.729A/B, G.711μ/a-law, G.726, G.722 (wideband), G.723, iLBC, OPUS

• Voice Features: VAD, AEC, CNG, PLC, AGC, AJB

• Headset Support: RJ9 headset jack with Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets

• Function Keys: 2 line keys with dual-color LED, 4 XML programmable context-sensitive soft keys, 5 navigation/menu keys, 8 dedicated function keys

• Provisioning: Firmware upgrade via FTP/TFTP/HTTP/HTTPS, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file

• Power Supply: Integrated PoE (IEEE 802.3af) or 5V DC/600mA adapter (sold separately)

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -10°C to 60°C

• Humidity: 10% to 90% non-condensing

• Dimensions: 208mm (L) x 180mm (W) x 63.4mm (H)

• Weight: 670g (unit), 880g (package)
