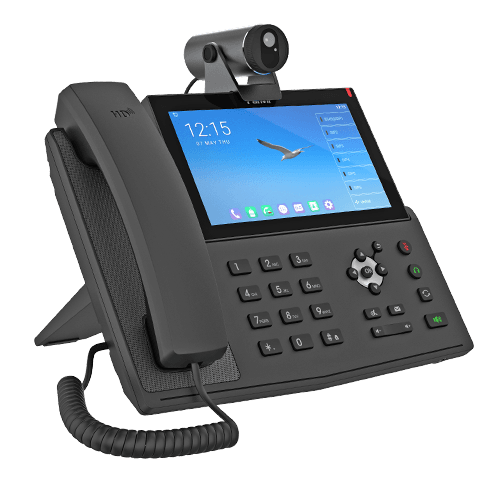

Fanvil X7A Android Touch Screen IP Phone

The Fanvil X7A is a premium Android-based IP phone designed for enterprise users who need advanced voice, video, and app integration. Running on Android 9.0, it features a large 7-inch capacitive touchscreen supporting up to 20 SIP lines and 112 programmable DSS keys. With built-in Wi-Fi, Bluetooth, HD audio, and optional USB camera support, the X7A is ideal for executives, receptionists, and professional call handlers requiring versatile, modern communication tools.

Product Features

Android 9.0 Operating System

Offers a smooth and intuitive user interface with access to Android apps and seamless touch navigation.

Large 7-Inch Color Touchscreen

High-resolution 7-inch display with capacitive touch supports extensive DSS keys for fast call control and monitoring.

Multi-Line Support

Handles up to 20 SIP accounts, providing flexible and efficient communication management.

Video Conferencing Capability

Supports HD video calls via H.264 codec with optional USB camera, enabling clear video collaboration.

Built-in Wi-Fi and Bluetooth

Dual-band Wi-Fi and Bluetooth 4.2 eliminate cable clutter and enable wireless headset connectivity.

Dual Gigabit Ethernet with PoE

Two 10/100/1000 Mbps Ethernet ports with Power over Ethernet simplify network connectivity and power supply.

Programmable Keys and Hotspot Function

Offers customizable soft keys and function keys to streamline workflow and quick access to features.

Advanced Security and Provisioning

Supports TLS, SRTP, HTTPS, 802.1x authentication, and various provisioning protocols for secure and scalable deployment.

Product Specifications

• Display: 7-inch capacitive color LCD, 1024×600 resolution

• SIP Lines: Up to 20

• DSS Keys: Up to 112 programmable keys

• Audio Codecs: G.722, Opus, G.711 a/μ, G.729AB, G.723.1, iLBC

• Video Codec: H.264 (720p/1080p), supports external USB camera

• Ethernet Ports: 2 x 10/100/1000 Mbps with PoE

• Wireless: Dual-band Wi-Fi (802.11 b/g/n/ac), Bluetooth 4.2

• USB: 1 x USB 2.0, micro SD card slot

• Power: IEEE 802.3af PoE or 5V/2A adapter

• Speakerphone: Full-duplex HD audio with acoustic echo cancellation

• Headset Support: RJ9 jack, Bluetooth, EHS compatible

• Conferencing: 3-way video, 5-way audio/video conferencing

• Phonebook: Local up to 2,000 entries; remote via XML/LDAP

• Call Log: Up to 1,000 records

• Security: HTTPS, TLS, SRTP, 802.1x authentication

• Provisioning: HTTP/HTTPS/FTP/TFTP, DHCP OPT66, SIP PnP, TR-069

• Dimensions: 268 x 201 x 168 mm (at 50° tilt)

• Weight: Approximately 1.1 kg

• Operating Temperature: 0 to 45 °C

• Humidity: 10% to 95% non-condensing

• Mounting: Desktop stand with adjustable angles; optional wall mount

• Compatible Platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya

The Fanvil X7A combines robust Android OS features with high-end telephony and video capabilities, making it a versatile and powerful choice for professional communication environments.
