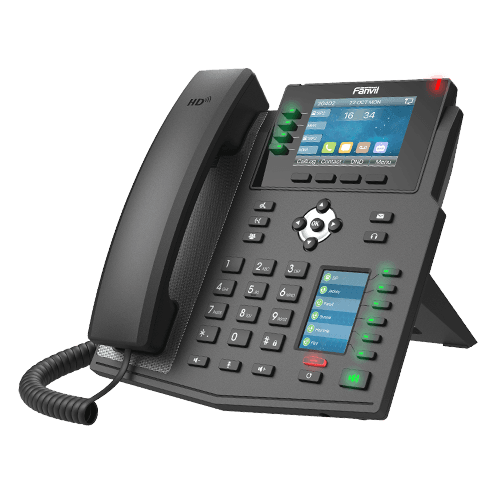

Fanvil X5U High-end IP Phone

The Fanvil X5U High-end IP Phone is an enterprise-grade SIP phone engineered to deliver exceptional communication performance for modern businesses. Featuring a 3.5-inch main colour display, a 2.4-inch DSS colour display, support for 16 SIP lines, HD audio, dual Gigabit Ethernet ports, integrated PoE, built-in Bluetooth, and 6-way audio conferencing, the X5U enhances productivity and collaboration in busy office environments. It is an excellent choice for executives, receptionists, call centres, and enterprise users seeking advanced VoIP functionality.

Product Features

Dual Colour Display

The X5U features a 3.5-inch 480 × 320 colour LCD and a 2.4-inch DSS colour display, providing quick access to call information, programmable keys, contacts, and business applications for improved workflow.

Supports 16 SIP Lines

Manage up to 16 SIP accounts simultaneously, making the phone ideal for executives, reception desks, customer service teams, and high-volume office environments.

HD Voice Quality

Equipped with wideband codecs including G.722 and Opus, the X5U delivers crystal-clear voice quality on both the handset and full-duplex speakerphone for natural conversations.

Intelligent DSS Keys

The dedicated DSS display supports up to 30 programmable DSS keys, enabling one-touch access to speed dials, BLF, call transfer, intercom, and other frequently used functions.

Built-in Bluetooth

Integrated Bluetooth 4.2 allows users to connect compatible Bluetooth headsets for greater mobility and hands-free communication.

Wi-Fi Expansion Support

Supports Wi-Fi connectivity through an optional USB Wi-Fi dongle, providing flexible deployment where wired Ethernet is not practical.

6-Way Audio Conferencing

Host 6-way local audio conferences, enabling efficient collaboration between internal teams and external participants without additional conferencing equipment.

Dual Gigabit Ethernet Ports with PoE

Features dual 10/100/1000 Mbps Gigabit Ethernet ports with integrated Power over Ethernet (PoE), reducing cable clutter while ensuring fast and reliable network connectivity.

EHS Wireless Headset Support

Compatible with Electronic Hook Switch (EHS) wireless headsets, allowing users to answer and end calls remotely for increased productivity.

Enterprise-Ready Design

Designed for demanding business environments including corporate offices, executive workstations, reception areas, hotels, healthcare facilities, educational institutions, and call centres.

Product Specifications

• Product Type: Enterprise SIP IP Phone
• Brand: Fanvil
• Model: X5U
• Display: 3.5-inch 480 × 320 Colour LCD
• Secondary Display: 2.4-inch DSS Colour LCD
• SIP Accounts: 16 SIP Lines
• Conference Calls: 6-Way Audio Conference
• Audio Codecs: G.722, Opus, G.711A/U, G.726, G.729AB, AMR, iLBC
• Network Ports: 2 × 10/100/1000 Mbps Gigabit Ethernet
• Power: IEEE 802.3af PoE or 5V DC Power Adapter
• Bluetooth: Built-in Bluetooth 4.2
• Wi-Fi: Supported via Optional USB Wi-Fi Dongle
• Programmable Keys: Up to 30 DSS Keys
• Phonebook Capacity: 2,000 Local Contacts
• Headset Support: RJ9 and EHS Wireless Headsets
• USB Port: USB 2.0
• Installation: Desktop Stand or Wall Mount (Optional Bracket)
• VoIP Protocol: SIP
• Applications: Executive Offices, Reception Areas, Call Centres, Hotels, Healthcare Facilities, Educational Institutions, and Enterprise VoIP Communication Systems
