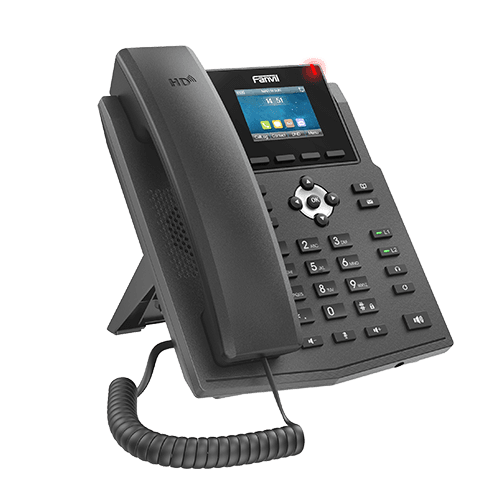

Fanvil X3S Pro Entry-Level IP Phone

The Fanvil X3S Pro is a smart and affordable entry-level IP phone tailored for small and medium-sized businesses that need reliable VoIP features. With support for multiple SIP lines, HD audio, and advanced connectivity, this compact telephone offers powerful performance without complexity. Ideal for general office use, reception desks, and remote workers.

Product Features

Three SIP Lines with Three Line Keys

Supports up to three SIP accounts, each accessible via a dedicated line key for straightforward call handling and easy access.

2.4-Inch Color LCD Display

Features a bright and clear 2.4-inch color display for smooth navigation, menu access, and display of caller ID information.

HD Audio Quality

Equipped with wideband codecs including G.722 and Opus, the X3S Pro delivers crisp, clear sound via both handset and full-duplex speakerphone for natural conversations.

3-Way Local Conference

Built-in support for three-way audio conferencing allows users to collaborate without needing external equipment.

Dual Ethernet Ports with PoE

Includes two 10/100 Mbps Ethernet ports and supports Power over Ethernet, simplifying installation and eliminating the need for separate power adapters.

EHS Wireless Headset Compatible

Offers support for Electronic Hook Switch (EHS), enabling users to connect compatible wireless headsets for hands-free use.

Broad Platform Support

Compatible with popular VoIP systems such as Asterisk, 3CX, Broadsoft, Metaswitch, Elastix, and Avaya, ensuring easy integration into existing IT infrastructures.

Secure Communication

Supports TLS and SRTP protocols for encrypted voice and signaling, protecting sensitive business conversations.

Easy Setup and Provisioning

Provides multiple provisioning options (HTTP, HTTPS, FTP, TFTP, DHCP, TR-069) and includes a web-based interface for quick and convenient configuration.

Product Specifications

• Display: 2.4-inch color LCD

• SIP Lines: Up to 3

• Audio Codecs: G.722, G.711a/μ, G.729AB, iLBC, Opus

• Speakerphone: Full-duplex with echo cancellation

• Ethernet Ports: 2 x 10/100 Mbps with PoE support

• Headset Interface: RJ9 jack with EHS support

• Power Options: 5 V/2 A adapter or PoE

• Dimensions: Approximately 144 x 207 x 190 mm

• Weight: Around 0.85 kg

• Operating Temperature: 0 °C to 45 °C

• Humidity Range: 10% to 95% (non‑condensing)

• Protocols Supported: SIP 2.0, TLS, SRTP, DHCP, FTP, TFTP, HTTP, HTTPS, TR-069, STUN, IPv6, LLDP, 802.1x

• Mounting Options: Desktop stand included; wall-mount bracket available

The Fanvil X3S Pro Entry-Level IP Phone combines affordability, essential features, and easy manageability—an ideal communication solution for growing businesses that need dependable VoIP performance.
