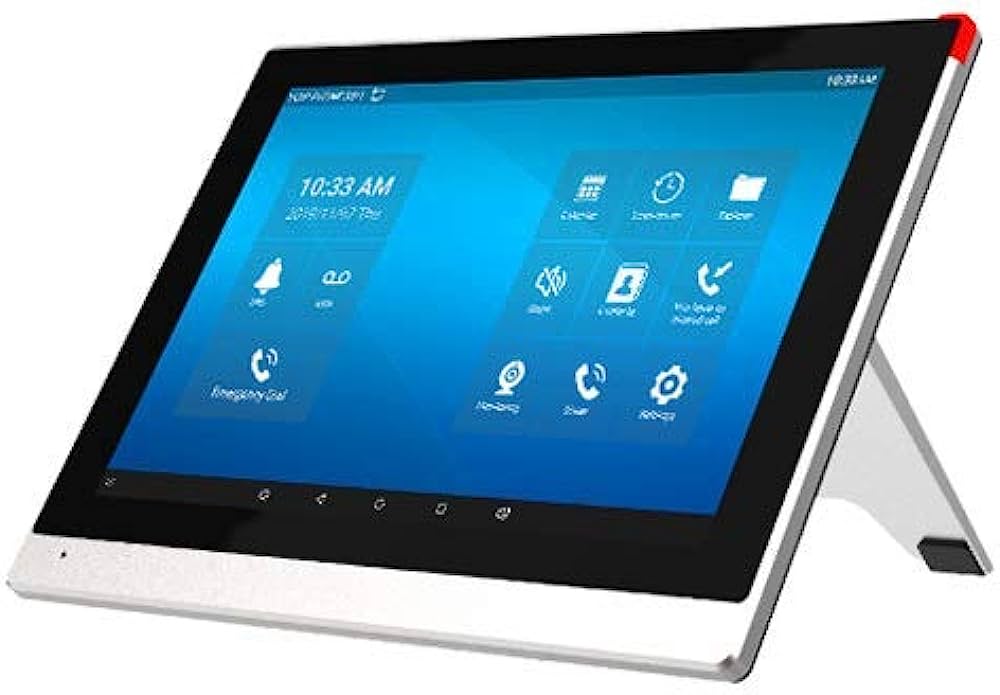

Fanvil i56A Touchscreen Android Indoor Doorphone

The Fanvil i56A is a high-end indoor SIP video intercom and control panel featuring a 10.1-inch capacitive touchscreen and Android 9.0 operating system. Designed for smart buildings, residential complexes, and office environments, it supports real-time audio and video communication, remote door unlocking, and seamless integration with security and building management systems. With dual SIP line support, built-in Wi-Fi and Bluetooth, and advanced control interfaces, the i56A delivers reliable performance, user-friendly operation, and centralized access management.

Product Features

10.1-inch capacitive touchscreen

Equipped with a large 1280 × 800 resolution color screen, the i56A offers a clear, responsive interface for video calls, access control, and system navigation.

Android 9.0 operating system

Provides a stable and open platform that allows users to install custom applications, integrate third-party software, and perform secondary development.

Dual-band Wi-Fi and Bluetooth 5.0

Offers wireless connectivity through both 2.4 GHz and 5 GHz Wi-Fi, along with Bluetooth 5.0 for flexible installation and peripheral pairing.

Dual SIP line support

Enables two simultaneous SIP accounts for intercom communication, call forwarding, and access management within a SIP-based network.

HD audio with echo cancellation

Features dual 1-watt speakers, wideband audio codecs, and built-in acoustic echo cancellation for crystal-clear communication.

ONVIF and video monitoring support

Supports ONVIF protocol and H.264 video decoding, allowing seamless integration with IP cameras and door stations for real-time video preview.

Rich I/O interfaces for integration

Includes RS-485, TF card slot, micro USB, 8 alarm inputs, and 2 short-circuit outputs for connection with external devices such as alarms, sensors, or relays.

Programmable control functions

Provides flexible button and interface customization, including door unlocking, alarm handling, and system scheduling.

PoE and DC power options

Supports power over Ethernet (IEEE 802.3af) for simplified cabling or 12V DC for traditional power setups.

Secure and remote provisioning

Enables remote configuration and secure firmware updates via HTTPS, FTP, TFTP, or TR-069 provisioning protocols.

Product Specifications

• Display: 10.1-inch capacitive touch screen

• Screen resolution: 1280 × 800

• Operating system: Android 9.0

• SIP accounts: 2

• Audio output: Dual 1 W speakers

• Audio features: acoustic echo cancellation, noise reduction, HD voice

• Audio codecs: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K, G.722, Opus

• Video codec: H.264

• Supported resolutions: QVGA, CIF, VGA, 4CIF, 720p, 1080p

• Network: 10/100/1000 Mbps Ethernet

• Wireless: dual-band Wi-Fi (2.4 GHz and 5 GHz), Bluetooth 5.0

• Interfaces:

  • RS-485

  • 8 alarm inputs

  • 2 short-circuit outputs

  • TF card slot

  • Micro USB

• Power: PoE (IEEE 802.3af) or 12 V DC / 1 A

• Power consumption: typically low, optimized for indoor use

• Installation: wall mount (standard); optional desktop stand

• Dimensions: approximately 260 × 150 × 18 mm

• Weight: approximately 550 g

• Operating temperature: 0 °C to 45 °C

• Operating humidity: 10% to 90% non-condensing

• Security protocols: HTTPS, SRTP, TLS, 802.1x

• Provisioning: TR-069, DHCP option 66, FTP, TFTP, HTTP, HTTPS

• Warranty: 2-year limited hardware warranty
