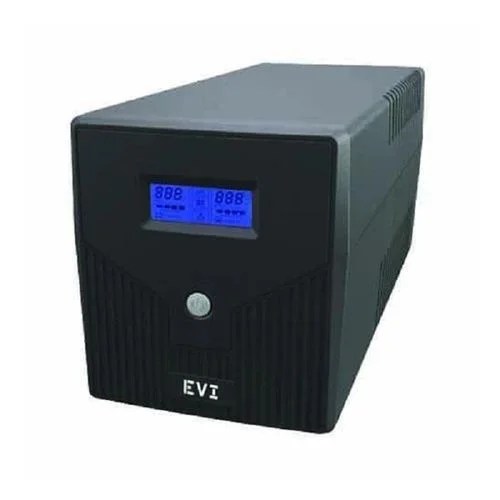

EVI 1100VA 600W Line Interactive UPS with LCD Display and AVR – EP-UPS1100UU2IE-UK

The EVI 1100VA 600W Line Interactive UPS is a high-performance backup power solution designed for professional environments requiring enhanced monitoring, stability, and protection. Featuring an LCD display, intelligent battery management, and bundled monitoring and control software, this UPS offers real-time insight and control over power conditions. Built-in Automatic Voltage Regulation (AVR) ensures stable output during voltage fluctuations, while the cold start function and four universal outlets provide flexible operation. Ideal for safeguarding computers, networking hardware, security systems, and sensitive electronics, this UPS delivers reliable uptime, data protection, and peace of mind.

Product Features

Advanced Line Interactive UPS with AVR

This UPS incorporates line interactive technology with built-in boost and buck AVR to maintain consistent voltage output. It corrects both under-voltage and over-voltage conditions without switching to battery mode, ensuring stable performance and extending battery life.

1100VA / 600W Output Capacity

Capable of supporting up to 600 watts, it is ideal for desktop computers, network switches, small servers, and other critical electronics that require uninterrupted power.

Intelligent Battery Management

Enhances battery performance with optimized charging cycles, thermal compensation, and over-discharge protection, increasing overall lifespan and reliability of the battery system.

Cold Start Function

Enables startup directly from battery power when AC input is unavailable. This allows users to power essential devices even in complete outage conditions.

LCD Display for Real-Time Status

The integrated LCD screen shows vital operating information such as input/output voltage, load level, battery status, and fault alerts, making power management easy and transparent.

Monitoring and Control Software Included

Bundled software enables remote monitoring and control of the UPS from a connected PC. This helps with event logging, notifications, and safe system shutdown during extended outages.

Four Universal Output Sockets

Equipped with four universal sockets to support multiple devices with different plug types, reducing the need for adapters and enhancing connectivity options.

Alarm Notifications and Visual Indicators

LED indicators and audible alarms alert users to changes in power status, low battery, overloads, and other system events, ensuring proactive management and protection.

Product Specifications

• Capacity: 1100VA / 600W
• UPS Topology: Line Interactive
• AVR Type: Boost and Buck
• Input Voltage Range: 140V – 300V AC
• Input Frequency Range: 45Hz – 65Hz (Auto sensing)
• Output Voltage (Battery Mode): 230V ±10%
• Output Frequency (Battery Mode): 50Hz or 60Hz ±1Hz
• Output Waveform (Battery Mode): Simulated Sine Wave
• Battery Type: 1 × 12V 9Ah Sealed Lead-Acid (maintenance-free)
• Recharge Time: 6 – 8 hours to 90% capacity
• Backup Time: 10 – 25 minutes depending on connected load
• Output Sockets: 4 × Universal Output Sockets
• Display: LCD Display (Input, Output, Battery, Load, Status)
• Cold Start: Supported
• Monitoring Software: Included (via USB communication port)
• Battery Management: Intelligent charging and protection system
• Indicators: LCD + LED (Status and Alerts)
• Audible Alarms: Battery Mode, Low Battery, Overload, Fault
• Operating Temperature: 0°C to 40°C
• Relative Humidity: 0% – 90% non-condensing
• Warranty: 2 years on UPS unit, 1 year on battery
• Model Number: EP-UPS1100UU2IE-UK
