Key Features

• Impressive Display Size: Projects screen sizes from 33 inches to a massive 320 inches, perfect for both business presentations and home entertainment.
• High Brightness: Equipped with 3LCD technology, providing 4,000 lumens of both White and Colour Light Output for vibrant images even in brightly lit rooms.
• WXGA Resolution: High-definition WXGA resolution (1280 x 800 pixels) with 16:10 aspect ratio, delivering clear and detailed visuals.
• Long Lamp Life: The UHE 210W lamp offers up to 6,000 hours of use (normal mode) and up to 12,000 hours in eco mode, providing up to 18 years of use.
• High Contrast Ratio: 16,000:1 contrast ratio for defined shadows and deep blacks.
• Portable Design: Easy to transport with a carry case, and features quick set-up options like auto vertical keystone correction and manual horizontal adjustment.
• Flexible Connectivity: Multiple inputs including HDMI, VGA, USB 2.0-A/B, composite video, and optional Wi-Fi for versatile use.

Display Technology

• Projection System: 3LCD Technology with an RGB liquid crystal shutter
• LCD Panel Size: 0.59 inches with C2 Fine technology
• Colour Processing: 10-bit colour processing for accurate and rich colours
• Colour Reproduction: Capable of displaying up to 1.07 billion colours

Brightness

• Colour Light Output: 4,000 lumens in standard mode and 2,600 lumens in economy mode
• White Light Output: 4,000 lumens (standard) and 2,600 lumens (economy)

Image and Optics

• Resolution: WXGA (1280 x 800)
• Aspect Ratio: 16:10, supports HD Ready content
• Throw Ratio: 1.30 – 1.56:1
• Zoom: Manual zoom with a factor of 1.2x
• Lens Type: Optical lens with manual focus adjustment
• Projection Distance: 1.68 m – 2.02 m for a 60-inch screen
• Projection Lens F Number: 1.49 – 1.72
• Focal Length: 16.9 mm – 20.28 mm
• Keystone Correction: Auto vertical ±30° and manual horizontal ±30°
• 2D Vertical Refresh Rate: 100 Hz – 120 Hz

Connectivity

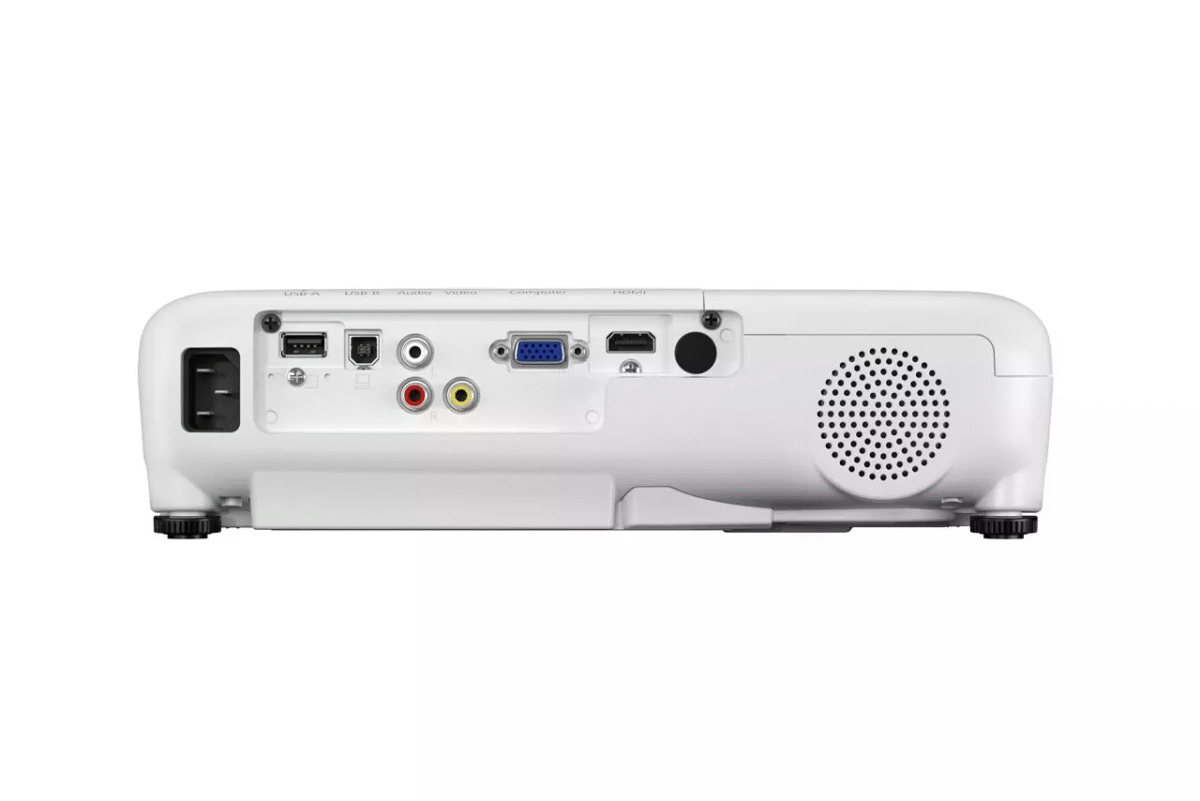

• Interfaces: HDMI, VGA, USB 2.0-A/B, composite video, and optional wireless LAN (802.11b/g/n)
• Wireless Projection: Compatible with Epson iProjection app for content sharing from smart devices (requires ELPAP11 adapter)
• Audio: Built-in 2W speaker for basic sound output

Advanced Features

• Security: Kensington lock, password protection, security cable hole, and wireless LAN unit lock
• Video Modes: Multiple modes including Dynamic, Cinema, Presentation, sRGB, and Blackboard
• Other Functions: AV mute slide, auto source search, Quick Corner for image alignment, and split-screen function for multi-view presentations

Power and Environmental

• Power Consumption:
  • 286W (Normal mode), 327W (Peak mode), 225W (Eco mode)
  • 0.3W in standby (Energy saving mode)
• Supported Voltage: AC 100V – 240V, 50Hz – 60Hz
• Noise Level:
  • 37 dB in normal mode
  • 28 dB in economy mode
• Operating Temperature: 5°C to 35°C
• Storage Temperature: -10°C to 60°C
• Humidity: Operating 20% – 80%, Storage 10% – 90%

Dimensions and Weight

• Size: 302 mm (W) x 237 mm (D) x 82 mm (H)
• Weight: 2.5 kg

Warranty and Support

• Warranty: 24 months carry-in warranty on the projector, 12 months or 1,000 hours on the lamp (whichever comes first)
• Included in the Box: Projector unit, power cable, remote control with batteries, carrying case, computer cable, user manual (CD), quick start guide, warranty card
