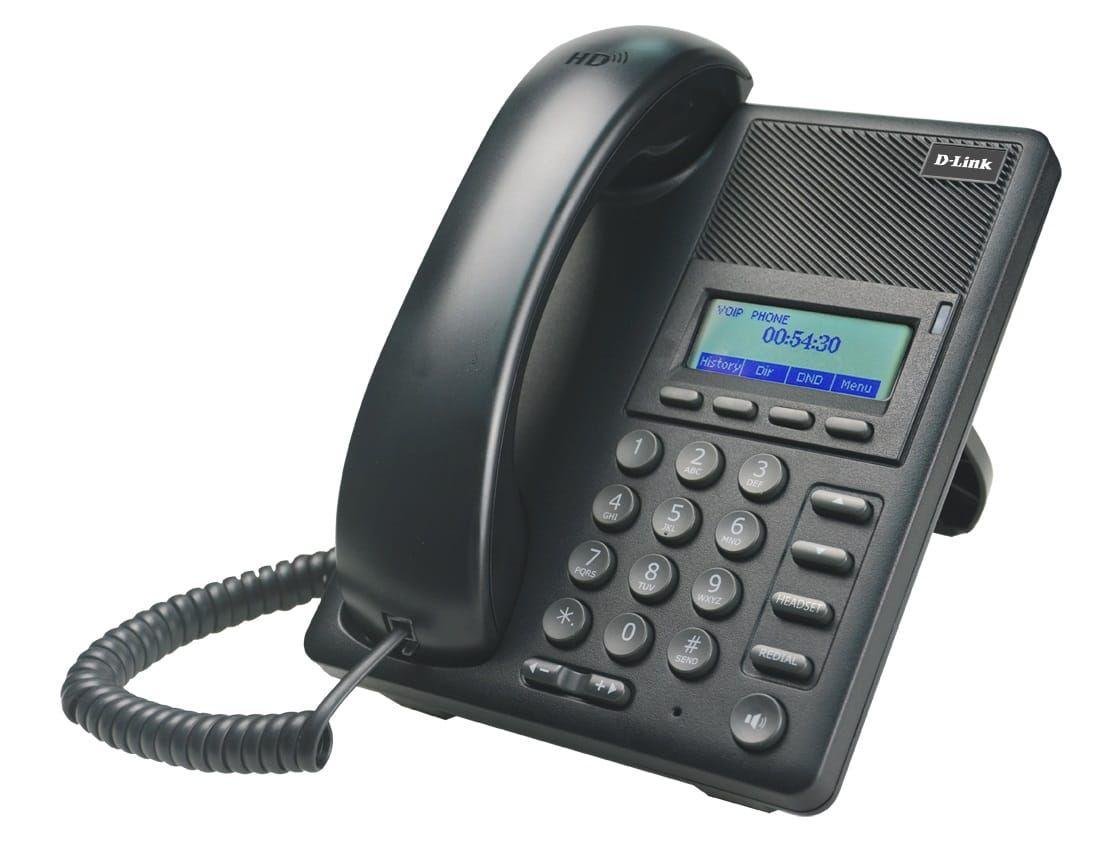

D-Link DPH-120SE/F1 SIP IP Phone

The D-Link DPH-120SE/F1 is a compact and efficient SIP-based IP phone designed for small to medium-sized businesses. It offers essential VoIP features, including support for up to two SIP accounts, a 128×48 dot-matrix LCD display, and a full-duplex speakerphone with acoustic echo cancellation. Its user-friendly interface and reliable performance make it an ideal choice for cost-effective communication solutions.

Product Features

Dual SIP Account Support

Enables registration of up to two SIP accounts, allowing users to manage multiple lines or extensions efficiently.

128×48 Dot-Matrix LCD Display

Features a clear and concise display for easy navigation and call management.

Full-Duplex Speakerphone

Equipped with a full-duplex speakerphone that includes acoustic echo cancellation for clear hands-free communication.

Power over Ethernet (PoE) Support

Supports PoE (IEEE 802.3af), simplifying installation by reducing the need for separate power adapters.

Programmable Soft Keys

Includes four programmable soft keys for quick access to frequently used functions.

Advanced Call Management

Supports features such as call forwarding, call transfer, call hold, call waiting, and three-way conferencing to enhance communication flexibility.

Security Features

Offers secure communication with support for TLS, SRTP, and 802.1x authentication.

Web-Based Configuration

Allows for easy setup and management through a web-based interface.

Compact Design

Designed to fit comfortably on any desk, saving space while providing essential communication capabilities.

Product Specifications

• SIP Accounts: Up to 2
• Display: 128×48 dot-matrix LCD
• Audio Codecs: G.711a/u, G.723.1 high/low, G.729AB, G.726-32, G.722
• Network Ports: 1 x 10/100BASE-T RJ-45 WAN port (PoE), 1 x 10/100BASE-T RJ-45 LAN port
• Speakerphone: Full-duplex with acoustic echo cancellation
• Programmable Keys: 4 soft keys
• Call Features: Call hold, call transfer (attended/unattended/semi-attended), call waiting, call forwarding (always/busy/no answer), three-way conferencing, call park, call pickup, redial, do not disturb
• Security: TLS, SRTP, 802.1x
• Power Supply: PoE (IEEE 802.3af) or 5V DC adapter
• Dimensions: 195 x 188 x 51 mm
• Weight: 0.51 kg
• Operating Temperature: 0°C to 40°C
• Relative Humidity: 10% to 65% (non-condensing)

This IP phone is an excellent choice for businesses seeking a reliable and cost-effective communication solution. Its essential features and compact design make it suitable for various office environments.
