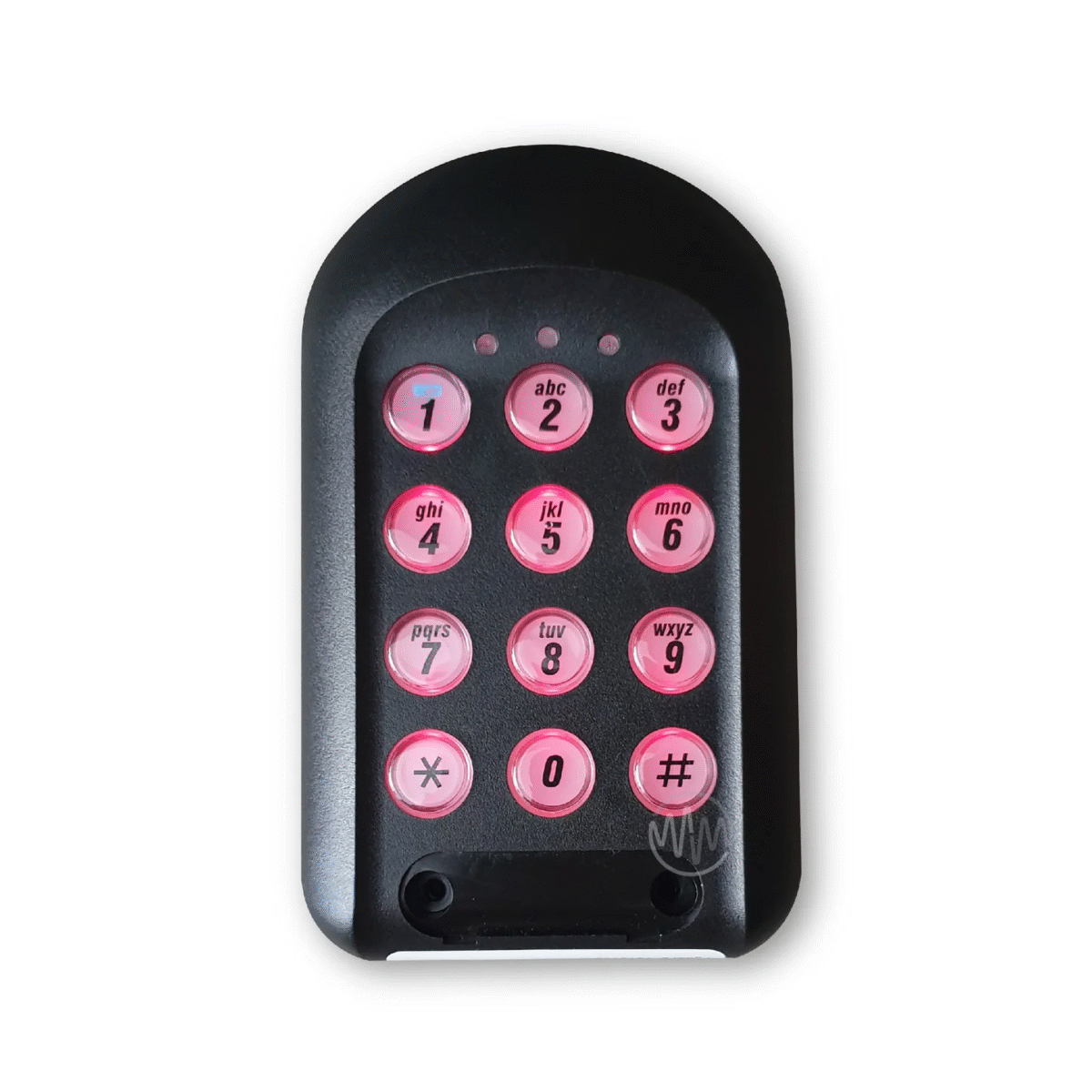

Centurion SmartGuard Air Wireless Keypad – Black

The Centurion SmartGuard Air Wireless Keypad is a secure, flexible, and weather-resistant access control solution designed to provide wireless PIN-based entry to gates, doors, garages, and other access points. Using robust wireless communication, this keypad eliminates the need for complex cabling, making it ideal for retrofitting or areas where wired connections are not feasible. It features up to 1,000 user PINs, multi-channel functionality, and customizable access control options—all housed in a compact, vandal-resistant black enclosure. The SmartGuard Air is fully compatible with Centurion receivers and gate systems, ensuring reliable performance across a wide range of applications.

Product Features

Wireless and Cable-Free Installation

The SmartGuard Air operates via secure wireless communication, eliminating the need for trenching or cabling—perfect for installations where running wires is difficult or cost-prohibitive.

Up to 1,000 Unique PINs

Supports 1,000 user-defined PIN codes, which can be individually assigned to control different devices or actions. Ideal for managing access for tenants, staff, or contractors.

Multi-Channel Control

The keypad can transmit signals to up to 15 different wireless channels, allowing users to control multiple gates, doors, or devices from a single unit.

Secure and Reliable Communication

Utilizes secure 433 MHz rolling code technology for encrypted signal transmission, reducing the risk of cloning or unauthorized access.

Fully Weather-Resistant

The housing is built from UV-stabilized, high-impact polycarbonate, making it suitable for outdoor use in harsh weather conditions.

Battery Powered for Standalone Use

Operates on long-lasting batteries (included), providing a self-contained solution that does not rely on mains power.

Compatible with Centurion Systems

Fully integrates with Centurion’s range of gate motors and receivers, including the NOVA and ROGUE systems, ensuring seamless operation.

Product Specifications

• Product Name: Centurion SmartGuard Air Wireless Keypad

• Color: Black

• Housing Material: UV-stabilized polycarbonate

• User Capacity: Up to 1,000 user-defined PIN codes

• Wireless Technology: 433 MHz rolling code encryption

• Transmission Range: Up to 50 meters (open air)

• Number of Channels: 1 to 15 configurable outputs

• Power Supply: 2 × AA batteries (included)

• Battery Life: Up to 2 years under typical usage

• Mounting: Surface mount with security screws

• Operating Temperature: -15°C to +50°C

• Protection Rating: Weatherproof for outdoor installation

• Compatibility: Centurion gate motors, NOVA receivers, ROGUE receivers, and access control systems

• Application: Residential driveways, commercial access points, security gates, pedestrian entrances

• Programming: Local keypad programming, no PC required

• Warranty: 12 months (manufacturer terms apply)

• Compliance: ICASA certified (South Africa)
