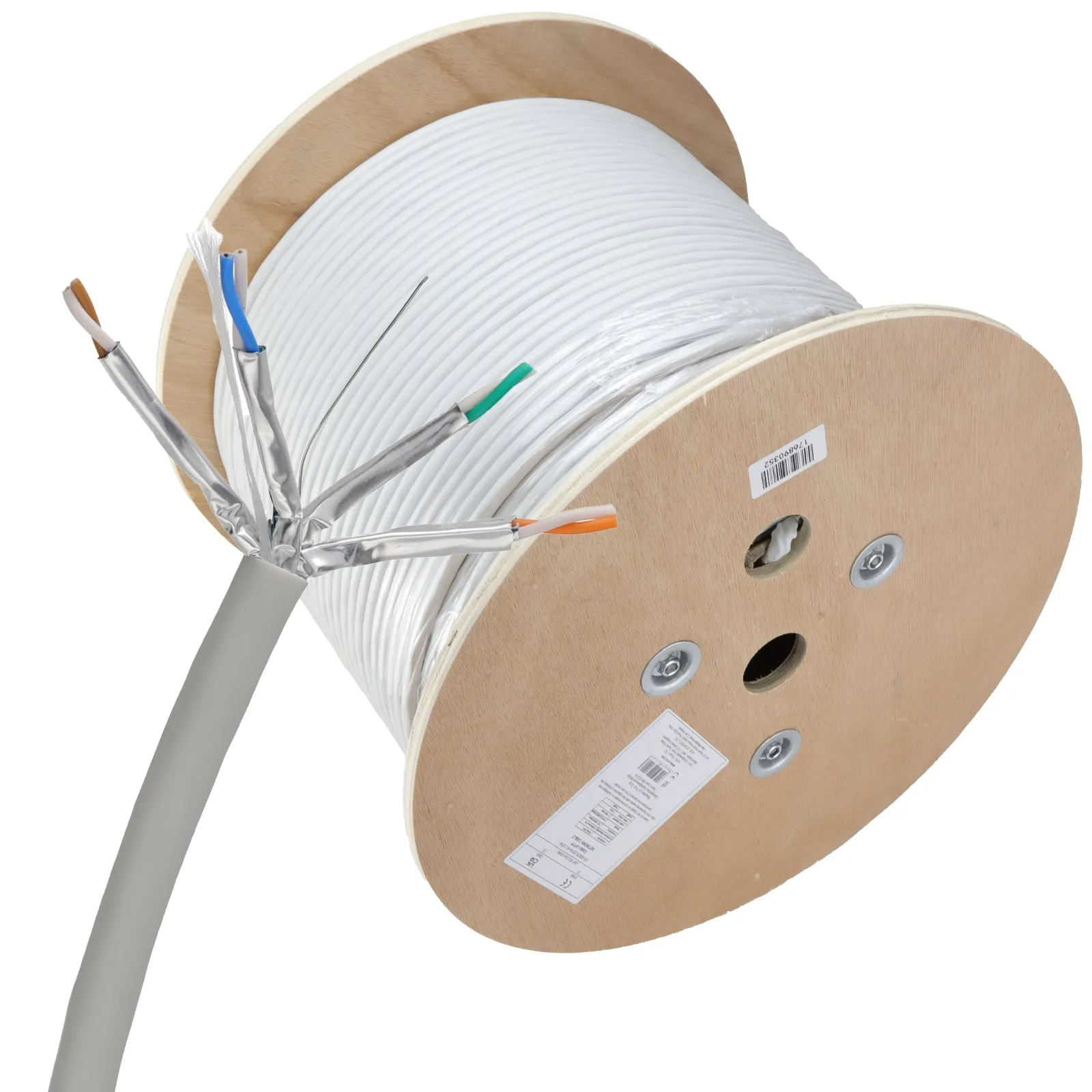

CAT 6A Arnet U/FTP Gray Cable – 305 Meters – Pure Copper

The CAT 6A Arnet U/FTP Gray Cable – 305 Meters – Pure Copper is a premium high-performance Ethernet cable designed for modern structured cabling systems and enterprise networks. Constructed with 100% solid bare copper 23 AWG conductors and U/FTP (Unshielded Foiled Twisted Pair) shielding, it delivers exceptional signal integrity, reduced crosstalk, and reliable 10 Gigabit Ethernet performance. Supplied in a 305-metre (1000 ft) pull box, this cable is ideal for data centres, commercial buildings, IP surveillance systems, and high-speed network infrastructures.

Product Features

10 Gigabit Ethernet Performance

Supports 10GBASE-T networking with data transfer speeds of up to 10 Gbps, making it ideal for bandwidth-intensive applications.

U/FTP Shielding

Each twisted pair is individually wrapped in aluminium foil, providing superior protection against electromagnetic interference (EMI) and alien crosstalk.

100% Solid Bare Copper Conductors

Manufactured with premium 23 AWG solid bare copper conductors for excellent conductivity, minimal signal loss, and dependable long-distance performance.

Category 6A Performance

Engineered to meet Category 6A standards, ensuring reliable high-speed connectivity for enterprise and commercial networks.

500 MHz Bandwidth

Supports frequencies of up to 500 MHz, enabling smooth transmission of voice, video, and high-speed data.

Low Smoke Zero Halogen (LSZH) Jacket

Features a durable LSZH outer jacket that emits minimal smoke and no halogen gases in the event of fire, making it suitable for enclosed indoor environments.

Compact Cable Design

The slim cable diameter improves airflow in cable trays and server racks while simplifying cable routing in high-density installations.

Power over Ethernet (PoE) Compatible

Supports PoE, PoE+, and high-power PoE devices, including IP cameras, wireless access points, VoIP phones, and network switches.

305 Metre Pull Box

Supplied in a convenient 305-metre (1000 ft) pull box for efficient installation and reduced cable wastage.

Ideal for Enterprise Networking

Perfect for data centres, enterprise LANs, structured cabling systems, smart buildings, server rooms, commercial buildings, and high-speed networking environments.

Product Specifications

• Brand: Arnet
• Product Type: Indoor Ethernet Cable
• Cable Category: CAT 6A
• Cable Type: U/FTP (Unshielded Foiled Twisted Pair)
• Cable Length: 305 Metres (1000 ft)
• Conductor Material: 100% Solid Bare Copper
• Conductor Size: 23 AWG
• Number of Pairs: 4 Twisted Pairs
• Shielding: Individual Foil Shielding on Each Pair
• Bandwidth: Up to 500 MHz
• Maximum Data Rate: Up to 10 Gbps
• Outer Diameter:8 mm
• Outer Jacket: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Gray
• Installation Environment: Indoor
• PoE Support: Supports PoE, PoE+, and High-Power PoE
• Packaging: 305 Metre Pull Box
• Standards Compliance: ANSI/TIA-568.2-D, ISO/IEC 11801, UL, cUL, and RoHS
• Applications: Enterprise LAN Networks, Structured Cabling, Data Centres, Server Rooms, IP CCTV Systems, Smart Buildings, Commercial Buildings, and High-Speed 10 Gigabit Networking.
