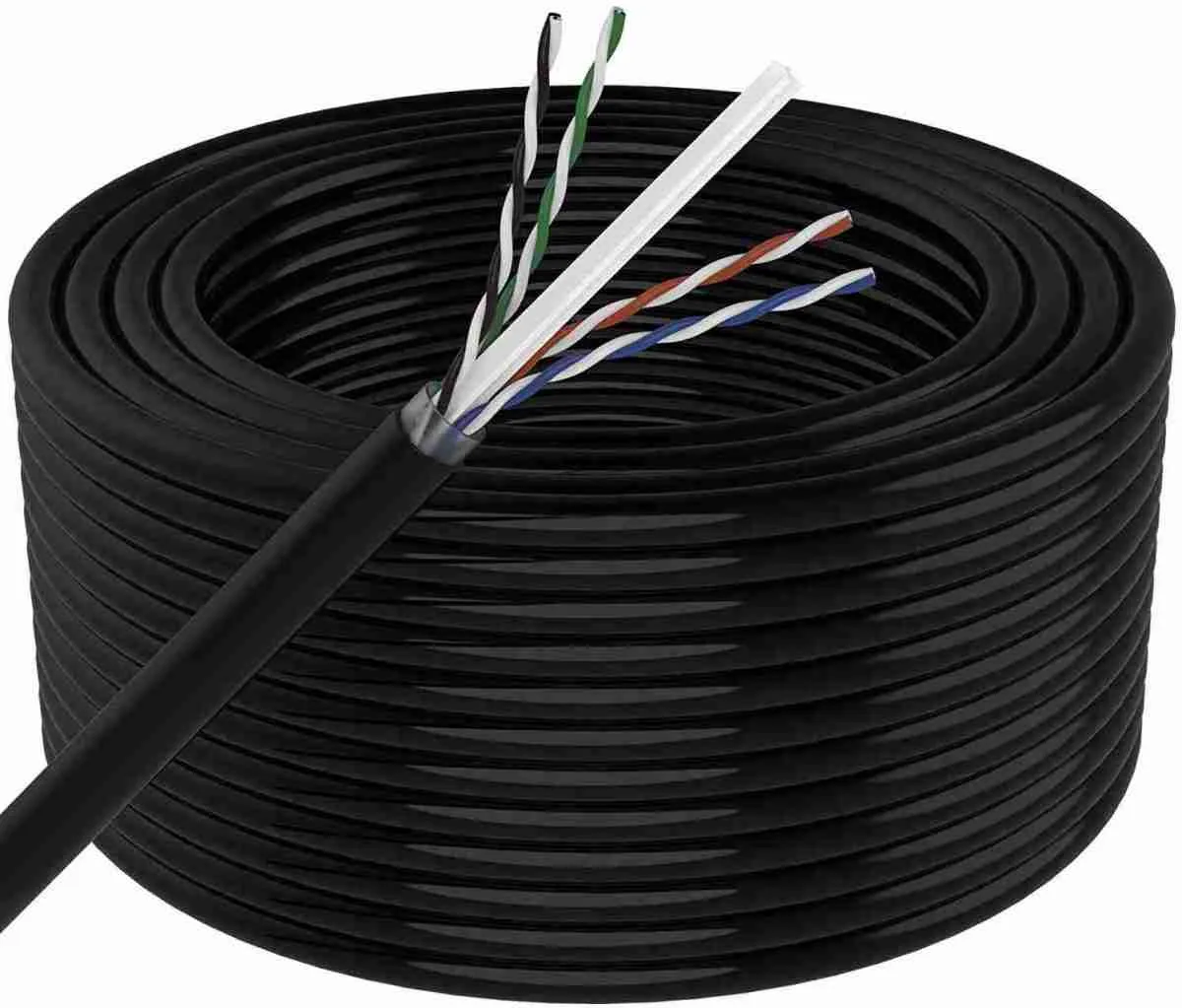

CAT 6 Outdoor Cable 305M

The CAT 6 Outdoor Cable 305M is a high-performance Ethernet cable built to deliver fast and reliable network connectivity in outdoor and harsh environments. Designed with weather-resistant materials and full copper conductors, this cable ensures exceptional durability, consistent performance, and protection against moisture, sunlight, and temperature fluctuations. It’s ideal for outdoor installations such as CCTV systems, wireless access points, and long-distance LAN connections that demand speed and stability.

Product Features

Weather-Resistant Construction

Built with a tough UV-resistant polyethylene (PE) outer jacket, the CAT 6 Outdoor Cable withstands exposure to direct sunlight, rain, and varying temperatures, ensuring long-term reliability in outdoor environments.

High-Speed Gigabit Performance

Supports frequencies up to 250 MHz and data transmission speeds up to 1 Gbps, providing stable and fast connectivity for demanding network applications such as streaming, IP surveillance, and data transfer.

Full Copper Conductors

Made from 100% pure copper wires to deliver superior conductivity, low signal loss, and high performance across long distances compared to CCA (Copper-Clad Aluminum) cables.

Enhanced Signal Protection

Features tightly twisted pairs that minimize crosstalk, electromagnetic interference (EMI), and radio frequency interference (RFI), ensuring strong and consistent signal transmission.

Easy Outdoor Installation

Supplied in a 305-meter pull box for convenient deployment. Suitable for use in conduits, underground ducts, or external wall-mounted applications.

Standards Compliance

Meets or exceeds TIA/EIA-568-C.2 Category 6 and ISO/IEC 11801 standards, ensuring compatibility with all Cat 6 and Cat 5e devices and network equipment.

Product Specifications

• Cable Type: CAT 6 U/UTP (Unshielded Twisted Pair)
• Length: 305 meters (1,000 feet)
• Conductor Material: Solid bare copper (100% pure copper)
• Conductor Size: 23 AWG
• Insulation Material: High-Density Polyethylene (HDPE)
• Jacket Material: UV-resistant PE (Polyethylene)
• Frequency: Up to 250 MHz
• Data Rate Support: 10/100/1000 Mbps (Gigabit Ethernet)
• Color: Black
• Operating Temperature: −40°C to +75°C
• Certification: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS compliant
• Applications: Outdoor LAN, CCTV, VoIP, Wi-Fi access points, and long-distance network installations
