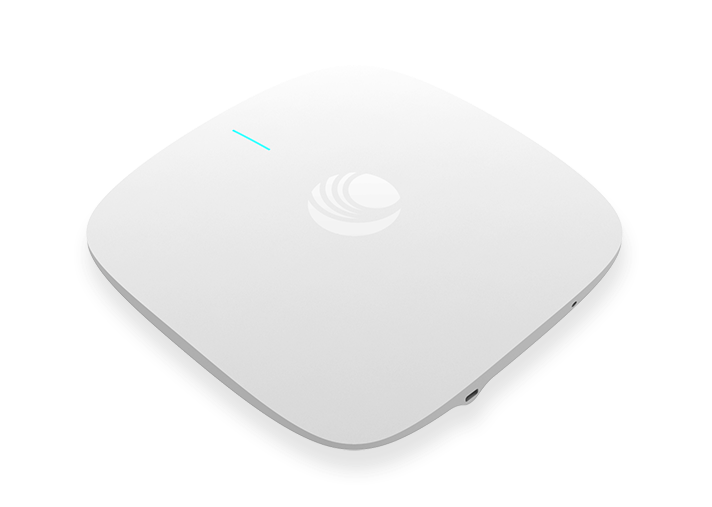

Cambium XV2-2X Indoor Wi-Fi 6 2×2 Access Point

The Cambium XV2-2X is a high-efficiency indoor wireless access point designed for modern enterprise networks, delivering robust Wi-Fi 6 (802.11ax) performance with 2×2 MU-MIMO across dual bands. Offering a total aggregate throughput of up to 1.77 Gbps, this access point is ideal for environments such as offices, classrooms, hospitals, and hospitality venues where reliable and scalable wireless connectivity is essential. With support for OFDMA, improved client capacity, and simplified cloud or on-premises management via cnMaestro, the XV2-2X enables next-generation wireless access with enterprise-grade security and intelligent network control.

Product Features

Dual-Band Wi-Fi 6 with 2×2 MU-MIMO

Operates on both 2.4 GHz and 5 GHz frequencies simultaneously with 2×2 MU-MIMO, offering a combined maximum throughput of up to 1.77 Gbps to support multiple users with higher efficiency.

Advanced Wi-Fi 6 Technologies

Supports OFDMA (Orthogonal Frequency-Division Multiple Access), BSS coloring, and Target Wake Time (TWT) to reduce latency, improve efficiency, and extend battery life for connected devices.

High-Density Client Support

Designed to handle dense device environments with support for up to 256 concurrent users, making it suitable for classrooms, retail locations, and open office spaces.

cnMaestro Centralized Management

Provides full lifecycle management via Cambium’s cnMaestro cloud or on-premises controller, allowing for zero-touch provisioning, real-time monitoring, and seamless firmware updates.

Enterprise-Level Security

Supports WPA3 encryption, 802.1X authentication, role-based access control, VLAN segmentation, and secure guest access features to protect data and ensure network integrity.

Compact, Low-Profile Design

A clean, minimalist design allows for easy ceiling or wall mounting in indoor environments where aesthetics and space efficiency are important.

Power Over Ethernet (PoE)

Supports IEEE 802.3af and 802.3at PoE standards, reducing cable clutter and simplifying installation with both power and data over a single Ethernet cable.

Intelligent RF Optimization

Includes automatic channel selection, band steering, client load balancing, and dynamic transmit power control to maintain optimal network performance.

Product Specifications

• Wireless standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Frequency bands: 2.4 GHz and 5 GHz concurrent dual-band
• MIMO configuration: 2×2 MU-MIMO on both bands
• Maximum data rate: Up to 574 Mbps (2.4 GHz), up to 1.2 Gbps (5 GHz)
• Aggregate throughput: Up to 1.77 Gbps
• Ethernet interface: 1 x 10/100/1000 Mbps Ethernet port with PoE
• PoE support: IEEE 802.3af/at compatible
• Antenna type: Integrated omnidirectional internal antennas
• Max client support: Up to 256 clients per access point
• SSID support: Up to 16 SSIDs (8 per radio)
• Management: cnMaestro cloud, on-premises, or standalone
• Security features: WPA3, WPA2-Enterprise, WPA2-Personal, 802.1X, MAC filtering, client isolation, VLAN tagging
• Roaming support: Fast roaming with 802.11r/k/v
• QoS support: WMM, airtime fairness, traffic prioritization
• Dimensions: 170 mm x 170 mm x 33 mm
• Weight: Approx. 400 g
• Operating temperature: 0°C to +50°C
• Mounting: Wall or ceiling mount (bracket included)
• Enclosure: Indoor-rated, flame-retardant plastic
• Compliance: FCC, CE, RoHS
