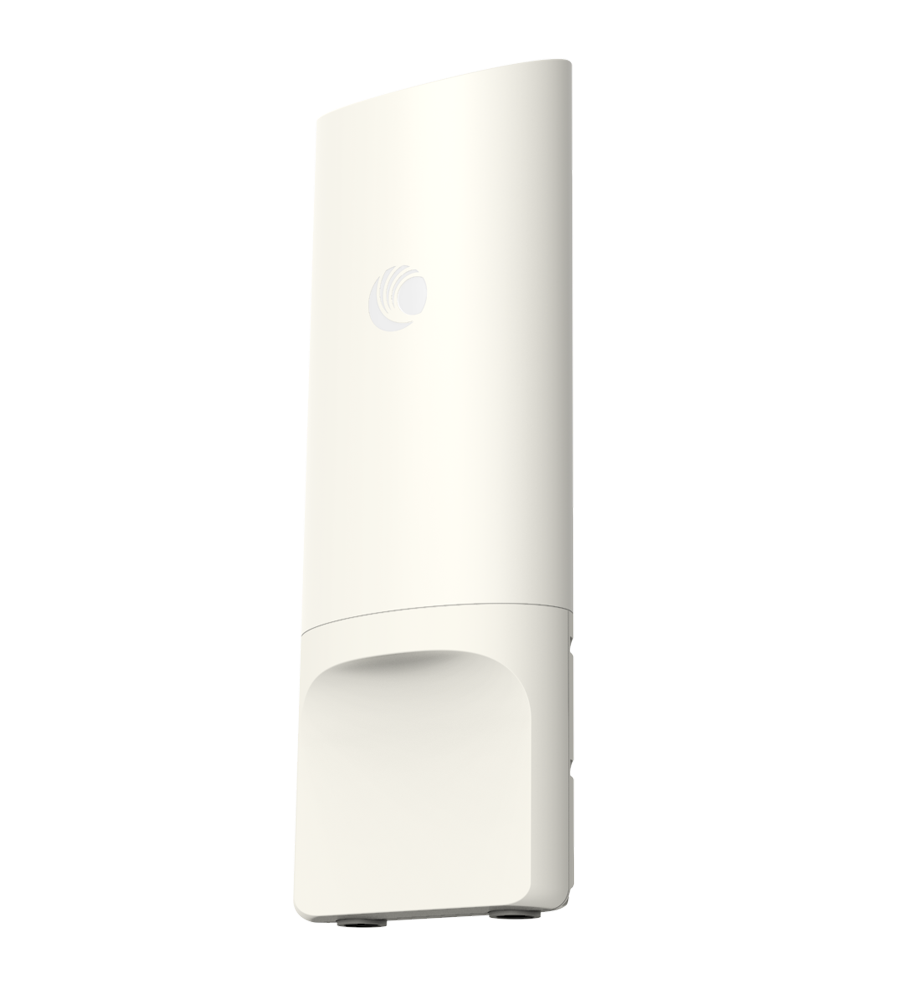

Cambium XV2-2T0 Outdoor WiFi 6 Access Point Omni 2×2

The Cambium XV2-2T0 is a high-performance, outdoor-rated WiFi 6 access point designed to deliver fast, efficient, and reliable wireless connectivity in public spaces, campuses, industrial sites, and hospitality environments. Featuring dual-radio 2×2 MU-MIMO and integrated omni-directional antennas, it supports concurrent dual-band operation and an aggregate data rate of up to 1.77 Gbps. Built for rugged outdoor use, the XV2-2T0 features an IP67-rated enclosure, extended temperature tolerance, and surge protection. It can be centrally managed via Cambium’s cnMaestro cloud or on-premises system, offering scalable, secure, and low-maintenance deployments.

Product Features

Dual-Radio WiFi 6 with 2×2 MU-MIMO

Delivers concurrent operation on 2.4 GHz and 5 GHz bands using 2×2 MU-MIMO, offering enhanced capacity and speed with total aggregate throughput up to 1.77 Gbps.

Integrated Omni-Directional Antennas

Includes built-in 360-degree omni antennas, ensuring broad and even coverage in open outdoor environments without the need for external antenna installation.

Outdoor-Ready, Rugged Design

Encased in a weatherproof IP67-rated enclosure, the XV2-2T0 is built to withstand rain, dust, humidity, wind, and extreme temperatures from -40°C to +65°C.

Optimized for High-Density Environments

Handles up to 256 concurrent users per access point with low latency and consistent performance, ideal for stadiums, parks, schoolyards, and outdoor business spaces.

Advanced WiFi 6 Technologies

Utilizes OFDMA, BSS coloring, and Target Wake Time (TWT) for improved spectral efficiency, reduced interference, and longer battery life for connected IoT devices.

Power over Ethernet Support

Supports 802.3at PoE+, simplifying installation by delivering power and data through a single Ethernet cable and eliminating the need for external power supplies.

Centralized Cloud or On-Premises Management

Managed through Cambium’s cnMaestro platform, enabling zero-touch provisioning, performance monitoring, firmware updates, and security policy management.

Enhanced Network Security

Includes support for WPA3, WPA2-Enterprise, 802.1X, VLAN segmentation, client isolation, MAC filtering, and role-based access control for secure public and enterprise access.

Product Specifications

• Wireless standard: IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
• Frequency bands: Dual-band 2.4 GHz and 5 GHz
• MIMO configuration: 2×2 MU-MIMO on both radios
• Maximum throughput: Up to 574 Mbps (2.4 GHz), up to 1.2 Gbps (5 GHz)
• Aggregate data rate: Up to 1.77 Gbps
• Ethernet interface: 1 x Gigabit Ethernet (10/100/1000 Mbps), PoE-enabled
• PoE standard: IEEE 802.3at (PoE+)
• Antenna type: Integrated omni-directional antennas
• Maximum EIRP: Up to 31 dBm (2.4 GHz), up to 35 dBm (5 GHz), region dependent
• Max client capacity: Up to 256 users per AP
• SSIDs supported: Up to 16 (8 per radio)
• Management: cnMaestro cloud, on-premises controller, or standalone
• Security: WPA3, WPA2-Enterprise, 802.1X, VLAN tagging, 802.11w PMF, guest isolation, ACLs
• Operating temperature: -40°C to +65°C
• Enclosure rating: IP67 weatherproof
• Mounting options: Wall or pole mount (hardware included)
• Dimensions: 215 mm x 215 mm x 70 mm
• Weight: Approximately 1.25 kg
• Compliance: FCC, CE, RoHS, EN 60601-1-2 (medical EMI tolerance)
• Roaming support: 802.11r/k/v for fast, seamless handoff
• QoS and traffic control: Airtime fairness, WMM, bandwidth control
