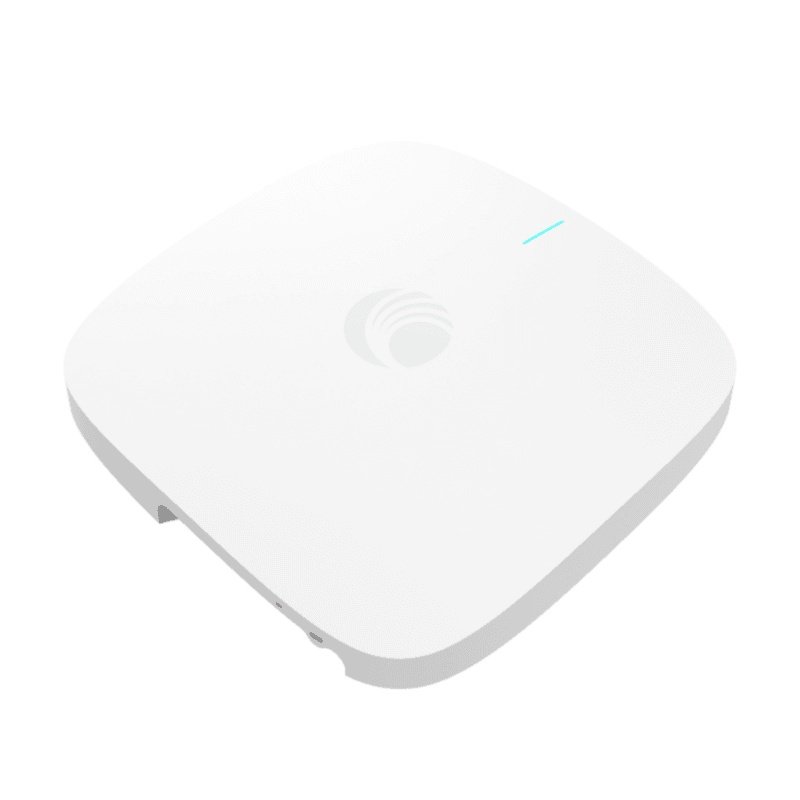

Cambium XE5-8 Indoor Tri-band WiFi 6E Access Point, 8×8
The Cambium XE5-8 is a high-capacity, high-performance indoor access point designed for ultra-dense environments demanding the fastest, most reliable wireless connectivity. Featuring tri-band WiFi 6E technology across the 2.4 GHz, 5 GHz, and newly opened 6 GHz spectrum, the XE5-8 delivers exceptional throughput, low latency, and future-proof performance. With a total of five radios, including a dedicated sensor radio and dual 8×8 MU-MIMO on 5 GHz and 6 GHz bands, this access point is ideal for large enterprise environments such as convention centers, auditoriums, airports, and smart buildings. Seamlessly integrated into Cambium’s cnMaestro management platform, the XE5-8 supports cloud and on-premises configuration, security monitoring, and advanced traffic optimization.
Product Features
Tri-Band WiFi 6E Connectivity
Operates on 2.4 GHz, 5 GHz, and 6 GHz frequency bands, expanding network capacity and reducing congestion with access to the 6 GHz spectrum. This enables ultra-fast speeds and support for next-generation devices.
8×8 MU-MIMO on 5 GHz and 6 GHz
Delivers enterprise-grade performance with 8 spatial streams on both 5 GHz and 6 GHz bands, providing high throughput and support for large numbers of simultaneous users.
Multi-Radio Architecture
Features a total of five radios: three client-serving radios (2.4 GHz, 5 GHz, and 6 GHz), one dedicated scanning/sensor radio, and one IoT radio for BLE, Zigbee, or other use cases.
Exceptional Aggregate Throughput
Capable of reaching up to 10.2 Gbps total wireless throughput, enabling support for bandwidth-heavy applications such as AR/VR, UHD video streaming, and immersive collaboration.
Built for High-Density Deployments
Ideal for venues with thousands of connected devices, the XE5-8 maintains strong performance with features like OFDMA, BSS coloring, load balancing, and intelligent band steering.
Cloud or On-Premises Management
Supports centralized configuration and monitoring through Cambium’s cnMaestro cloud or on-premises controller, with real-time analytics, zero-touch provisioning, and security enforcement.
Enterprise-Grade Security
Equipped with WPA3, WPA2-Enterprise, 802.1X, 802.11w Protected Management Frames, client isolation, VLAN tagging, and role-based access control to protect users and data.
Power over Ethernet (PoE++) Support
Supports IEEE 802.3bt PoE++ for high power delivery over a single Ethernet cable, simplifying installation in ceiling or wall-mounted environments.
IoT-Ready with Integrated Radio
Includes a separate IoT radio to support Bluetooth Low Energy (BLE), Zigbee, or other low-power protocols, enabling smart building applications without additional hardware.
Product Specifications
- Wireless standard: IEEE 802.11a/b/g/n/ac/ax/be (WiFi 6/6E)
- Frequency bands: 2.4 GHz, 5 GHz, and 6 GHz
- MIMO configuration:
- 2.4 GHz: 4×4 MU-MIMO
- 5 GHz: 8×8 MU-MIMO
- 6 GHz: 8×8 MU-MIMO
- Total aggregate throughput: Up to 10.2 Gbps
- Radios:
- 3 x Client radios (2.4 GHz, 5 GHz, 6 GHz)
- 1 x Dedicated scanning/sensor radio
- 1 x IoT radio (BLE/Zigbee-capable)
- Ethernet ports:
- 1 x 5 Gbps Ethernet (PoE++)
- 1 x 1 Gbps Ethernet
- PoE input: IEEE 802.3bt (PoE++)
- Max client support: Up to 1,500 concurrent users per AP
- SSID support: Up to 32 SSIDs (across all radios)
- Operating temperature: 0°C to +50°C
- Antenna type: Integrated omnidirectional internal antennas
- Security: WPA3, WPA2-Enterprise, WPA2-Personal, 802.1X, 802.11w PMF, MAC filtering, ACLs, VLAN segmentation
- Enclosure: Indoor-rated, flame-retardant plastic
- Mounting options: Ceiling or wall mount (hardware included)
- Dimensions: 225 mm x 225 mm x 55 mm
- Weight: Approx. 1.6 kg
- Roaming: 802.11k/r/v fast roaming supported
- QoS features: WMM, airtime fairness, traffic shaping, bandwidth limits
- Management: cnMaestro cloud, on-premises, or standalone
