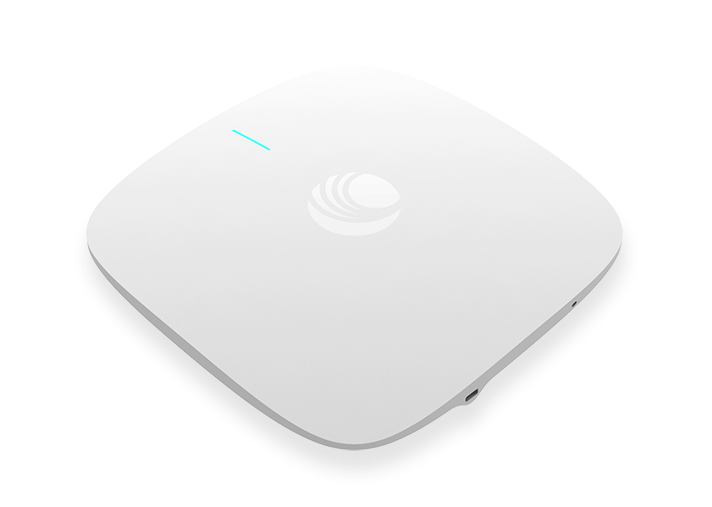

Cambium cnPilot E410 WiFi 5 Indoor Access Point

The Cambium cnPilot E410 is a dual-band 802.11ac Wave 2 indoor access point designed to deliver fast, stable, and scalable wireless connectivity in medium to high-density environments. With support for up to 256 concurrent users, this enterprise-grade access point offers superior throughput, seamless roaming, and controller-less operation, making it ideal for offices, hotels, schools, and indoor public areas. Managed through Cambium’s cnMaestro cloud or on-premises controller, the E410 also supports zero-touch provisioning, multi-SSID segmentation, and mesh networking, providing advanced flexibility and security for demanding networks.

Product Features

Dual-Band 802.11ac Wave 2 Technology

Supports simultaneous 2.4 GHz and 5 GHz operation with speeds up to 1.3 Gbps aggregate throughput. This improves performance, load balancing, and reduces interference in dense deployments.

MU-MIMO with Beamforming

The 2×2 MU-MIMO technology allows the access point to serve multiple users simultaneously, increasing capacity and efficiency in busy environments.

Seamless Controller-Less Roaming

Enables clients to roam between multiple access points without dropping connections, even in the absence of a dedicated wireless controller.

Cloud and On-Premises Management

Easily manage the E410 through Cambium’s cnMaestro platform, offering remote configuration, monitoring, firmware updates, and troubleshooting in real time.

High Client Capacity

Supports up to 256 concurrent connected clients, making it suitable for high-density venues such as classrooms, conference halls, or shared workspaces.

Mesh Networking Capability

Provides self-healing mesh connectivity, enabling flexible deployments in locations where Ethernet cabling is limited or unavailable.

Enhanced Security and Guest Access

Supports WPA2-Enterprise, WPA2-Personal, 802.1X authentication, VLAN tagging, and customizable guest portals with access control and isolation options.

Power Over Ethernet (PoE) Support

Compliant with 802.3af PoE, allowing both data and power delivery over a single Ethernet cable for simplified installations.

Industrial-Grade Durability

Housed in a plenum-rated enclosure, the E410 is suitable for ceiling or wall installations and can operate in commercial environments with elevated safety standards.

Product Specifications

• Wireless Standards: IEEE 802.11a/b/g/n/ac Wave 2
• Frequency Bands: 2.4 GHz and 5 GHz dual-band
• MIMO Configuration: 2×2 MU-MIMO with beamforming
• Max Aggregate Throughput: Up to 1.3 Gbps
• Client Capacity: Up to 256 concurrent users
• SSIDs: Up to 16 (8 per radio)
• Ethernet Ports: 1 x 10/100/1000 Mbps Gigabit Ethernet (PoE-enabled)
• Power Supply: 802.3af PoE input (PoE injector sold separately)
• Antenna Gain: 4.55 dBi (2.4 GHz), 4.25 dBi (5 GHz)
• Transmit Power: Up to +25 dBm per radio
• Management: cnMaestro cloud or on-premises controller, or standalone mode
• Security: WPA2, WPA-Enterprise, 802.1X, guest access, VLAN tagging, ACLs
• Dimensions: 170 mm x 170 mm x 41 mm
• Weight: 384 g
• Operating Temperature: 0°C to +50°C
• Enclosure: Plenum-rated, suitable for ceiling or wall mount
