Barrier Infrared IR Outdoor Solar Beam Detector Alarm 30m Specs and Price in Kenya

Product Description

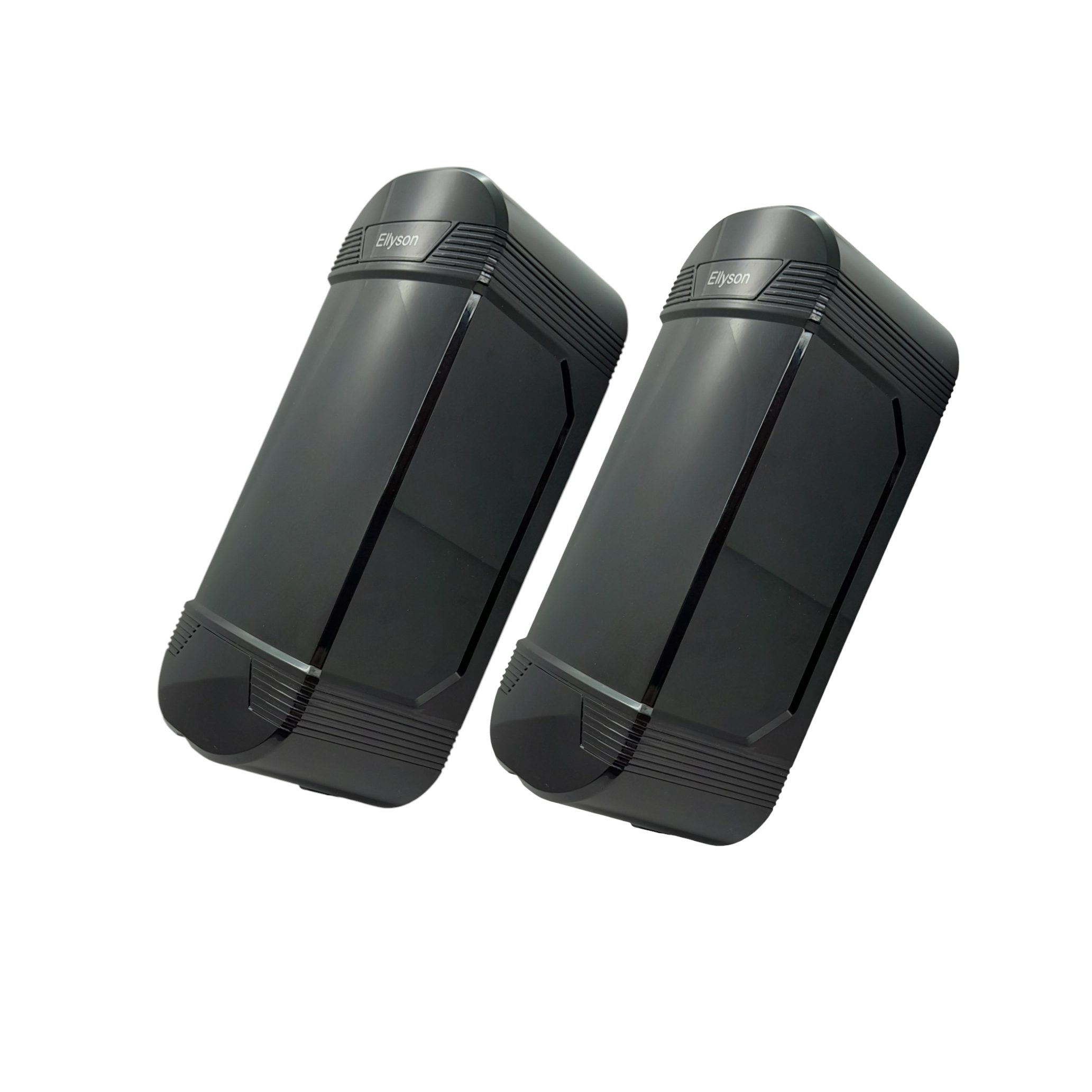

Barrier Infrared IR Outdoor Solar Beam Detector Alarm 30m:

• It has two modules: transmitter and receiver, both with IP55 protection against dust and water.
• Both modules have 2 lenses each for the transmission and reception of infrared rays.
• Connections to the alarm center or digital input center are made by cable.
• It allows a distance of 30 m outdoors and 90 m indoors.
• The orientation angle of the lenses is adjustable inside the housing (+/- 90 degrees in the horizontal plane and +/- 10 degrees in the vertical plane).

Barrier Infrared IR Outdoor Solar Beam Detector Alarm 30m Specs

• It has two modules: transmitter and receiver, both with IP55 protection against dust and water.
• Both modules have 2 lenses each for the transmission and reception of infrared rays.
• Connections to the alarm center or digital input center are made by cable.
• It allows a distance of 30 m outdoors and 90 m indoors.
• The orientation angle of the lenses is adjustable inside the housing (+/- 90 degrees in the horizontal plane and +/- 10 degrees in the vertical plane).
• The transmitter module has 2 terminals to connect the power supply and 2 terminals to connect the tamper protection tamper.
• The receiver module has 2 terminals for connecting the power supply, 2 terminals for connecting the tamper protection tamper and 3 terminals for connecting the alarm jump.
• The receiver module has indicator LEDs to aid in the calibration and orientation of the infrared rays.
• 5-position adjustable infrared ray response time.
• Voltage: 13.8 to 24.0 VDC (power supply not included).
• Consumption: 40 mA.
• It can be fixed to the wall or to a mast.
• Anchors and screws are supplied for fixing to the mast. The diameter of the mast should be from 38 to 55 mm.
• Size: 171 x 77 x 80 mm.
