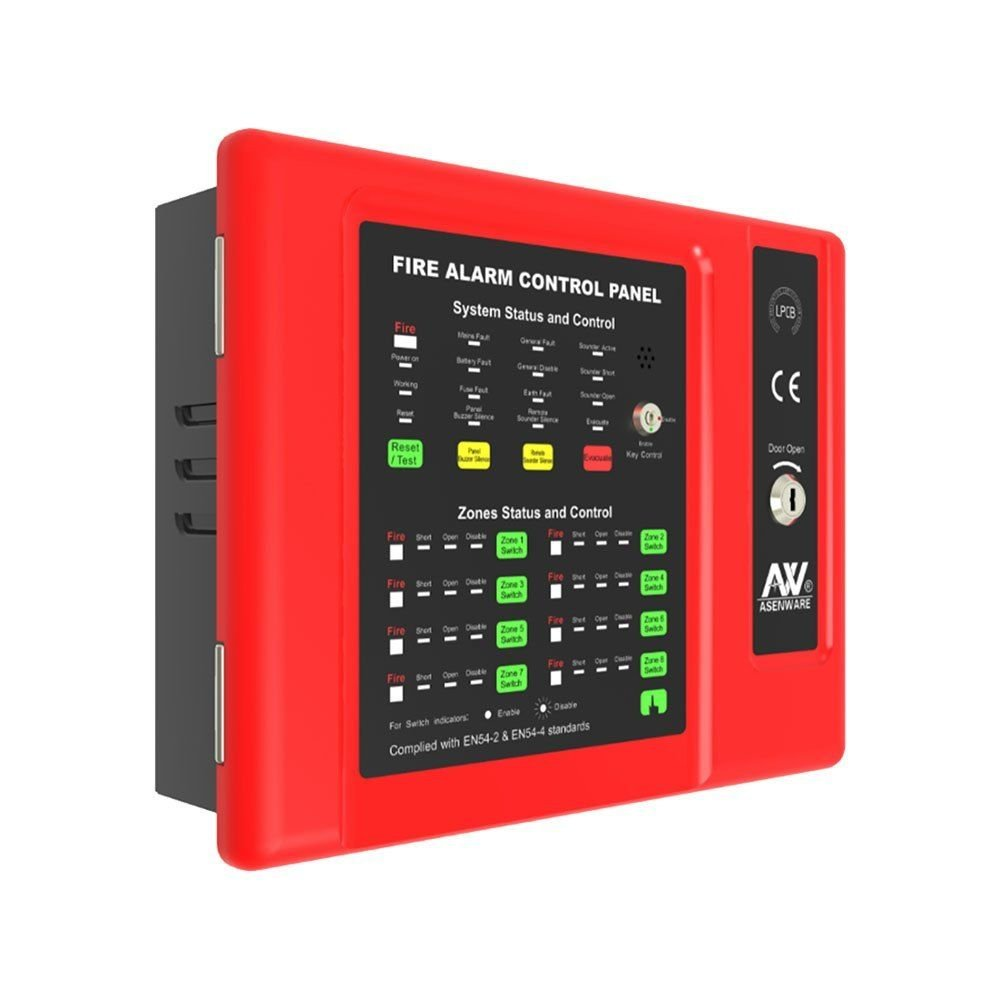

ASENWARE Fire Alarm System – AW-CFP2166-08 8 Zones Conventional Fire Alarm Control Panel

The ASENWARE AW-CFP2166-08 is an 8-zone conventional fire alarm control panel designed to provide reliable fire detection and alarm management in small to medium-sized commercial, industrial, and residential buildings. Built to meet international safety standards, this panel supports multiple zone monitoring, easy configuration, and robust connectivity with a wide range of conventional detectors, manual call points, and alarm devices. The AW-CFP2166-08 is ideal for projects requiring dependable, cost-effective fire alarm systems that ensure early warning and effective evacuation.

Product Features

8 Independent Alarm Zones

The panel supports up to 8 fire detection zones, each with separate alarm and fault indicators, allowing quick identification of fire origin and system faults for faster response and maintenance.

Broad Compatibility with Conventional Devices

Compatible with standard conventional smoke detectors, heat detectors, manual call points, and alarm bells or sounders. It supports normally open contacts and meets regional fire safety regulations.

Intuitive LED Indicators and Control Interface

LED indicators for each zone provide clear status visibility—fire, fault, or normal. The front panel includes push-button controls for reset, silence, test, and evacuate operations.

Sounder Circuits with Delay Options

Built-in sounder circuits provide audible notification during alarms, with programmable delay times. Outputs can activate sirens, bells, or interface with other safety systems.

Built-in Battery Backup and Power Supply

Equipped with an integrated power supply and charger, the panel supports 24VDC operation and includes space for backup batteries to maintain functionality during power loss.

System Expansion and Integration

Features multiple relay outputs (fire and fault), allowing integration with sprinkler systems, fire doors, or third-party building management systems.

Product Specifications

• Model: AW-CFP2166-08

• Zones: 8 conventional fire detection zones

• Device Compatibility: Conventional detectors, manual call points, alarm bells/sounders

• Indicators: LED indicators for fire, fault, and zone status

• Power Supply: 220V AC input, 50/60Hz

• Backup Power: Supports two 12V sealed lead-acid batteries (not included)

• Operating Voltage: 24VDC system

• Sounder Circuits: 2 outputs with configurable delays

• Alarm Output: 24VDC, 500mA max

• Fault Output: Dry contact relay (NO/NC)

• Fire Output: Dry contact relay (NO/NC)

• Operating Temperature: -10°C to +50°C

• Relative Humidity: ≤95% non-condensing

• Installation: Wall-mounted

• Material: Metal enclosure, powder-coated finish

• Certification: EN54-2 / EN54-4 compliant

• Dimensions: Approx. 380 mm × 280 mm × 100 mm

• Application: Office buildings, schools, warehouses, shops, hospitals, apartment blocks
