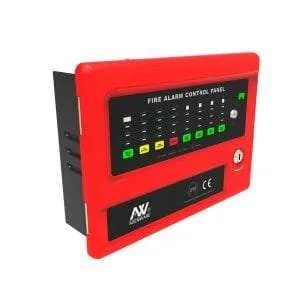

Asenware 4 Zone Fire Alarm Control Panel AW-CFP2166-4

The Asenware AW-CFP2166-4 4 Zone Fire Alarm Control Panel is a conventional fire alarm control panel designed to provide reliable fire detection and alarm management for small to medium-sized commercial and industrial buildings. Built in compliance with EN54-2 and EN54-4 standards, it supports smoke detectors, heat detectors, manual call points, alarm bells, sounders, and sprinkler supervision devices. With intelligent fault monitoring, backup battery support, and intuitive controls, it delivers dependable fire protection and simplified system management.

Product Features

Four Conventional Detection Zones

Provides four independently monitored detection zones, allowing separate monitoring of different areas within a building.

EN54 Compliant Design

Designed in accordance with EN54-2 and EN54-4 standards for reliable fire detection and alarm system performance.

Modular and Expandable System

Part of the AW-CFP2166 series, allowing system expansion from 1 up to 32 zones to accommodate larger installations.

Dual Monitored Sounder Outputs

Includes two monitored sounder circuits for activating fire alarm bells and sirens during emergency situations.

Intelligent Fault Monitoring

Continuously supervises detectors, sounder circuits, wiring, batteries, and power supply, providing clear fault indications for easy maintenance.

Automatic Battery Backup

Automatically switches to backup batteries during mains power failure, ensuring uninterrupted operation.

User-Friendly Control Panel

Features dedicated Reset, Silence, Evacuate, and Zone Disable functions with LED status indicators for straightforward operation.

Optional GSM Notification

Supports an optional GSM module for sending fire alarm notifications via SMS.

Product Specifications

• Brand: Asenware
• Model: AW-CFP2166-4
• Product Type: Conventional Fire Alarm Control Panel
• Number of Zones: 4
• System Expansion: Expandable up to 32 Zones
• Detector Capacity: Up to 20 Conventional Detectors per Zone
• Power Supply: 110–240VAC, 50/60Hz
• Internal Power Supply:2VDC
• Backup Batteries: 2 × 12V 2.3Ah Sealed Lead Acid Batteries
• Sounder Outputs: 2 Monitored Sounder Circuits
• Auxiliary Output: 24VDC
• Relay Outputs: Fire Relay and Fault Relay (NO/NC)
• End-of-Line Resistor:8kΩ
• Maximum Output Current: 3A
• Operating Temperature: -5°C to +40°C
• Operating Humidity: 5%–95% RH (Non-Condensing)
• Maximum Cable Size:5mm²
• Dimensions: 640 × 390 × 150 mm
• Weight: Approximately 13 kg (Including Batteries)
• Compliance: EN54-2 and EN54-4
• Applications: Offices, Schools, Hospitals, Hotels, Warehouses, Factories, Shopping Centres, Apartment Buildings, Commercial Premises, and Industrial Facilities
