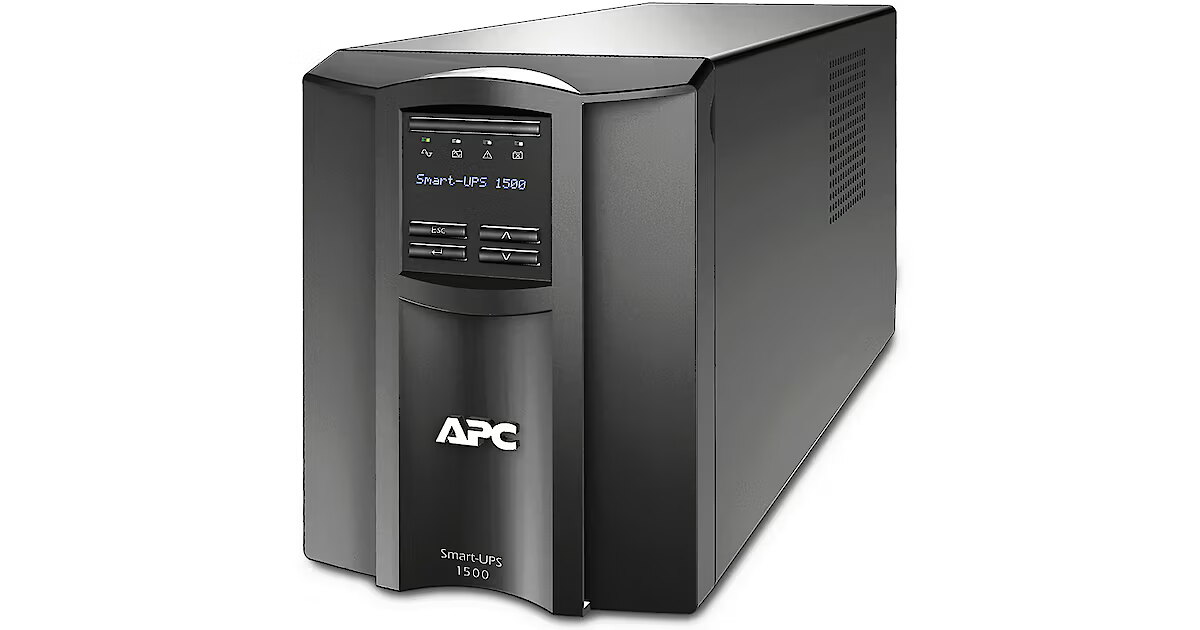

APC Smart-UPS C 1500VA LCD 230V with SmartConnect – SMT1500IC

The APC Smart-UPS C 1500VA LCD (SMT1500IC) is a high-performance uninterruptible power supply (UPS) designed to safeguard your critical electronic devices from power disturbances.

With a robust output capacity of 1500VA (900 Watts), this UPS is ideal for protecting servers, networking equipment, and sensitive electronics in home and business environments.

Equipped with SmartConnect technology, the Smart-UPS C enables remote monitoring and management through a secure web portal, providing real-time insights into your power conditions. The pure sine wave output and automatic voltage regulation ensure that your devices receive clean, stable power, enhancing their longevity and performance.

Features

• Output Capacity: Delivers up to 1500VA / 900 Watts, providing reliable backup power for a wide range of devices.
• SmartConnect Technology: Offers secure remote management, allowing users to monitor UPS status, receive notifications, and perform firmware updates from any location.
• LCD Display: The multifunction LCD provides vital information on UPS status, battery health, load levels, and input/output voltage, enabling straightforward monitoring.
• Pure Sine Wave Output: Ensures compatibility with sensitive electronics, protecting them from voltage spikes and fluctuations.
• Automatic Voltage Regulation (AVR): Maintains consistent output voltage, safeguarding connected equipment from minor voltage variations.
• Surge Protection: Integrated surge protection features help shield devices from electrical disturbances, ensuring uninterrupted operation.

Specifications

Output

• Max Configurable Power: 900 Watts / 1.5kVA
• Output Voltage Distortion: Less than 5%
• Output Frequency: 50/60 Hz ± 3 Hz (sync to mains)
• Other Output Voltages: 220V, 240V
• Topology: Line interactive
• Waveform Type: Pure sine wave
• Transfer Time: 6 ms typical; 10 ms maximum

Input

• Input Voltage Range: 170 – 300V (adjustable), 180 – 287V
• Input Frequency: 50/60 Hz ± 3 Hz (auto-sensing)

Batteries & Runtime

• Battery Type: Lead-acid battery
• Typical Recharge Time: 3 hours
• Nominal Battery Voltage: 24 V
• Replacement Battery: RBC6
• Expected Battery Life: 3 – 5 years
• Battery Charge Power: 73 Watts

Communications & Management

• Interface Port(s): USB
• Control Panel: Multifunction LCD status and control console

Surge Protection and Filtering

• Surge Energy Rating: 459 Joules
• Filtering: Full-time multi-pole noise filtering; meets UL 1449 standards

Physical

• Maximum Height: 219 mm
• Maximum Width: 171 mm
• Maximum Depth: 439 mm
• Net Weight: 20.1 kg
• Shipping Weight: 22.64 kg
• Shipping Dimensions: 330 mm (H) x 590 mm (W) x 330 mm (D)
• Color: Black

Environmental

• Operating Temperature: 0 – 40 °C
• Operating Relative Humidity: 0 – 95%
• Operating Elevation: 0 – 3048 meters
• Storage Temperature: -15 – 45 °C
• Storage Relative Humidity: 0 – 95%
• Audible Noise at 1 Meter: 45.0 dBA
