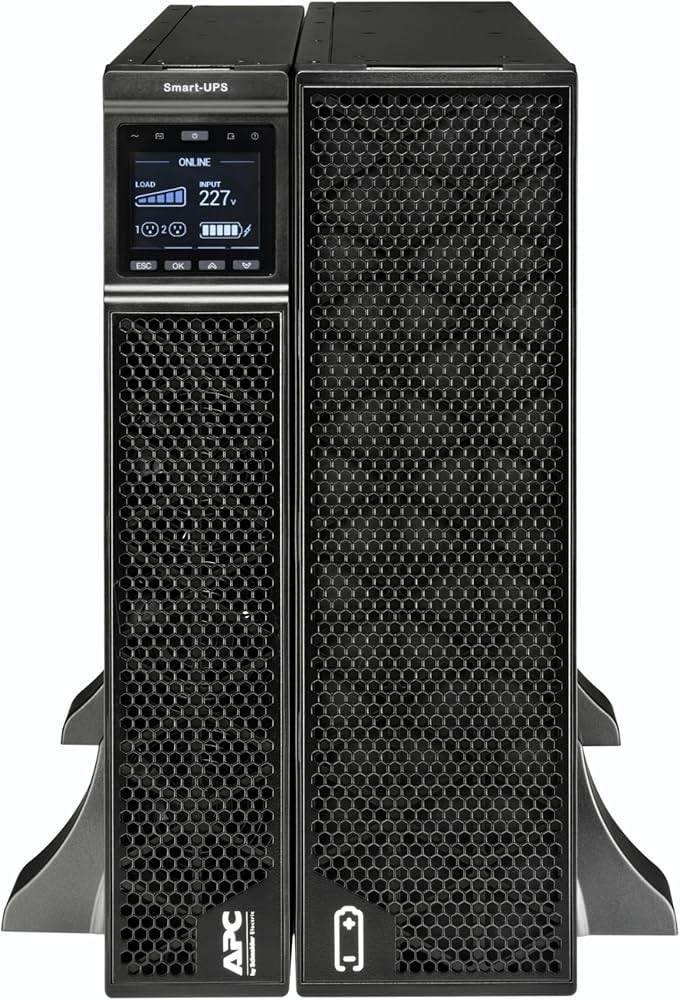

APC RT 10kVA Smart-UPS (SRTG10KXLI)

The APC RT 10kVA Smart-UPS (SRTG10KXLI) is a high-performance, double-conversion online UPS designed for mission-critical applications in data centers, large enterprise IT environments, and industrial operations. Offering scalable runtime, advanced power conditioning, and robust surge protection, this UPS ensures continuous, clean, and reliable power delivery to sensitive equipment. Its modular design supports hot-swappable batteries and easy maintenance, minimizing downtime and maximizing operational efficiency.

Product Features

High Capacity 10kVA / 9kW Power Output

Delivers reliable, uninterrupted power for critical IT infrastructure and industrial systems, ensuring system uptime and data integrity.

Double-Conversion Online Topology

Provides consistent, clean, and stable power by continuously converting incoming AC power to DC and back to AC, isolating equipment from power disturbances.

Scalable Runtime with External Battery Packs

Supports additional external battery modules to extend backup time as per operational requirements.

Hot-Swappable Batteries

Enables battery replacement without powering down the connected equipment, reducing downtime and simplifying maintenance.

Advanced Power Management and Monitoring

Integrated network management card allows remote monitoring, control, and configuration through web interface, SNMP, or serial connection.

Robust Surge and Spike Protection

Protects sensitive electronics from voltage spikes, surges, and electrical noise to extend equipment lifespan.

User-Friendly LCD Interface

Features a large, intuitive LCD screen providing real-time status, alarms, and detailed system information.

Product Specifications

• Brand: APC by Schneider Electric
• Model: SRTG10KXLI
• Capacity: 10kVA / 9kW
• Input voltage: 380 / 400 / 415V (configurable)
• Output voltage: 380 / 400 / 415V (configurable)
• Input frequency: 50/60Hz auto-sensing
• Output frequency: 50/60Hz (configurable)
• Topology: Double-Conversion Online
• Battery type: Sealed Lead Acid, Maintenance-Free (hot-swappable)
• Battery runtime: Scalable with external battery packs
• Transfer time: 0 milliseconds (online)
• Communication interfaces: Network Management Card, RS-232, USB, Dry contacts
• Display: LCD with multi-language support
• Dimensions (H x W x D): Approx. 1760mm x 438mm x 804mm
• Weight: Approx. 210 kg (varies with battery configuration)
• Operating temperature: 0°C to 40°C
• Certifications: CE, IEC, UL
• Warranty: 2 years (standard manufacturer warranty)
