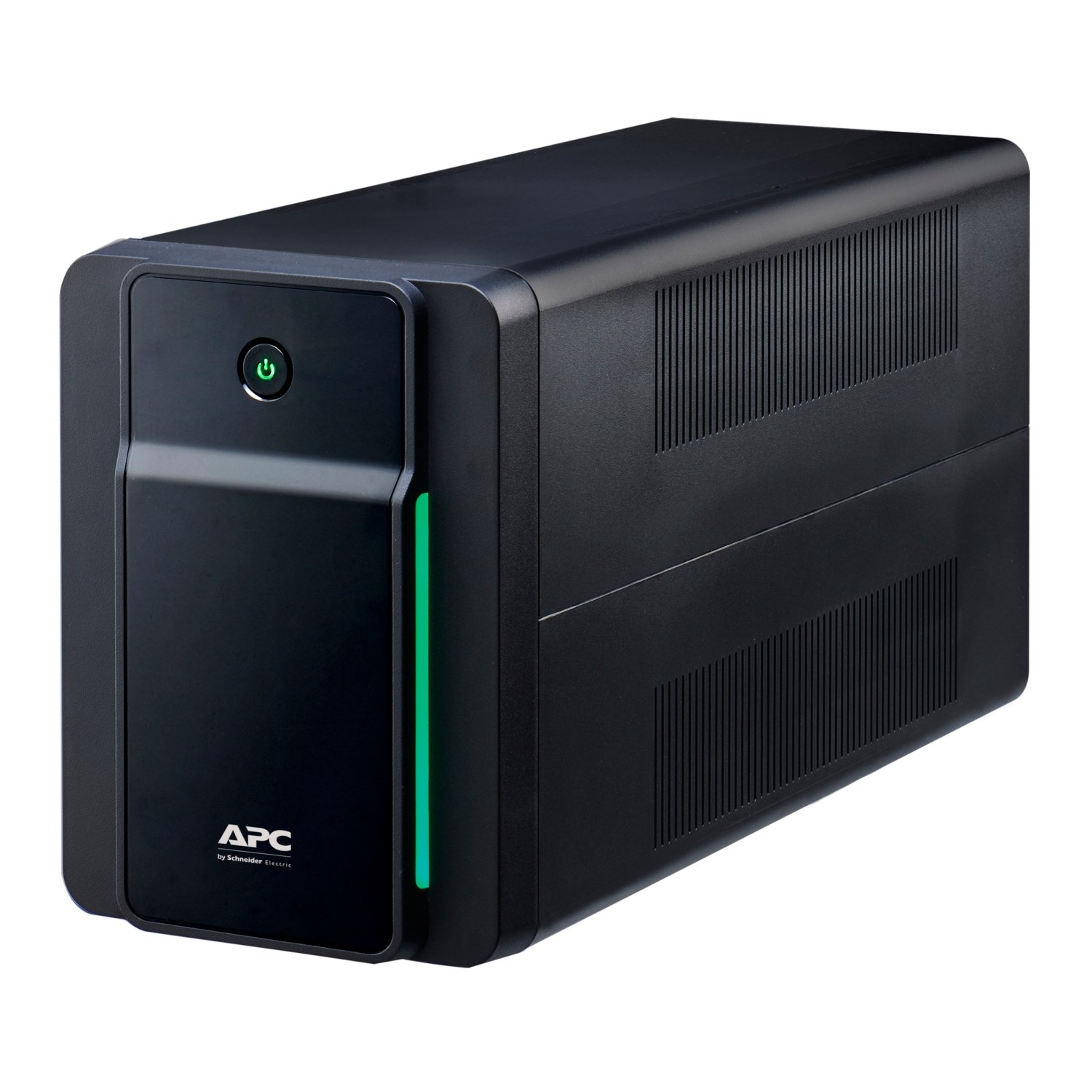

APC Back-UPS 1200VA, 230V, AVR, Universal Sockets (BX1200MI)
Model: BX1200MI-MS

Overview

Product Type: Uninterruptible Power Supply (UPS)
Rated Power: 1200 VA / 650 W
Main Input Voltage: 230 V

Key Features

• Voltage Regulation: Automatic Voltage Regulation (AVR) to stabilize fluctuating power conditions.
• Outlet Types: 4 Universal Sockets + 1 IEC 60320 C13 Outlet
• Cable Length: 1.2 meters
• Battery Type: Maintenance-free lead-acid battery

Battery & Runtime

• Recharge Time: 8 hours to full charge
• Battery Voltage: 12 V
• Battery Life: 3-5 years (under typical conditions)
• Replacement Battery: Compatible with APCRBC175
• Runtime:
  • Full Load (650W): 1 minute
  • Half Load (300W): 5 minutes

Physical Specifications

• Color: Black
• Dimensions (HxWxD): 19 cm x 14 cm x 39 cm
• Weight: 7.6 kg
• Mounting: Not rack-mountable; no specific mounting preference

Input & Output Specifications

• Network Frequency: 50/60 Hz, auto-sensing ±5 Hz
• Input Voltage Range: 140 – 300 V
• Input Power Factor (at Full Load): 0.54
• Output Frequency: 50/60 Hz ±1 Hz (sync to mains)
• UPS Type: Line-interactive with Stepped Approximation Sine Wave Output
• Transfer Time: 6 ms typical, 10 ms maximum

Environmental Specifications

• Operating Temperature: 0 to 40 °C
• Storage Temperature: -15 to 40 °C
• Humidity: 0-95% non-condensing
• Operating Altitude: Up to 3000 m
• Acoustic Noise Level: 40 dBA
• IP Protection Rating: IP20

Surge Protection & Filtering

• Surge Energy Rating: 273 Joules

Conformance & Warranty

• Certifications: CE
• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018
• Equipment Protection Policy: Lifetime warranty with €50,000 coverage
• Warranty: 2-year repair or replacement

Package Details

• Package Weight: 8.6 kg
• Dimensions: 29.7 cm x 49.5 cm x 23.5 cm

This APC Back-UPS model offers reliable protection against power interruptions and voltage fluctuations, making it ideal for home and office setups needing stable and uninterrupted power delivery.
