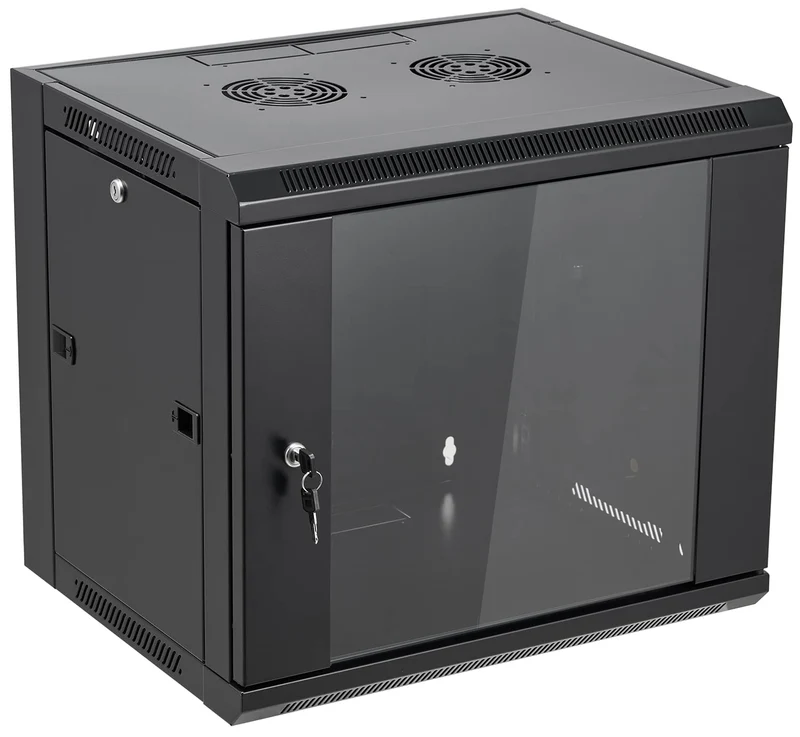

9U Data Cabinet 600 x 600 Network Cabinet

The 9U Data Cabinet 600 x 600 Network Cabinet is a robust wall-mounted enclosure designed to securely house and organize networking and telecommunications equipment. Built from high-quality cold-rolled steel, it supports standard 19-inch rack-mounted devices, including network switches, patch panels, routers, DVRs, NVRs, and power distribution units. With its 600 mm width and 600 mm depth, this cabinet provides additional internal space for improved cable management and equipment installation, making it ideal for small to medium-sized network deployments.

Product Features

9U Rack Capacity

Provides 9 rack units of mounting space for networking, security, and communication equipment.

Standard 19-Inch Rack Compatibility

Designed to accommodate all standard 19-inch rack-mounted devices, ensuring compatibility with a wide range of networking hardware.

Durable Steel Construction

Constructed from powder-coated cold-rolled steel for exceptional strength, durability, and corrosion resistance.

Spacious 600 x 600 mm Design

The 600 mm depth offers additional space for deeper networking equipment, organized cable routing, and improved airflow.

Lockable Tempered Glass Front Door

Features a lockable tempered glass front door that enhances equipment security while allowing easy visual monitoring.

Removable Side Panels

Removable side panels provide convenient access for installation, maintenance, and cable management.

Adjustable Mounting Rails

Includes adjustable mounting rails for flexible installation of equipment with varying depths.

Efficient Cable Management

Top and bottom cable entry points simplify cable routing and help maintain a clean, organized installation.

Ventilated Cabinet Design

Integrated ventilation slots promote natural airflow to help maintain optimal operating temperatures. The cabinet also supports optional cooling fans for enhanced heat dissipation.

Easy Wall Installation

Designed for secure wall mounting, making it suitable for environments where floor space is limited.

Wide Range of Applications

Ideal for structured cabling systems, server rooms, CCTV installations, telecommunications equipment, schools, offices, retail stores, and other professional networking environments.

Product Specifications

• Product Type: Wall-Mount Network Cabinet
• Rack Height: 9U
• Rack Standard: 19-Inch
• External Dimensions: 600 × 600 mm
• Material: Powder-Coated Cold-Rolled Steel
• Door Type: Lockable Tempered Glass Front Door
• Side Panels: Removable
• Mounting Rails: Adjustable
• Cable Entry: Top and Bottom
• Ventilation: Integrated Ventilation Slots with Optional Fan Mounting
• Colour: Black
• Installation Type: Wall Mounted
• Load Capacity: Up to 60 kg
• Compatibility: Network Switches, Patch Panels, Routers, DVRs, NVRs, Shelves, PDUs, and Other Standard 19-Inch Rack Equipment
• Applications: Enterprise Networks, Structured Cabling, CCTV Systems, Data Rooms, Telecommunications, Educational Institutions, Commercial Offices, Retail Stores, and IT Infrastructure Installations
