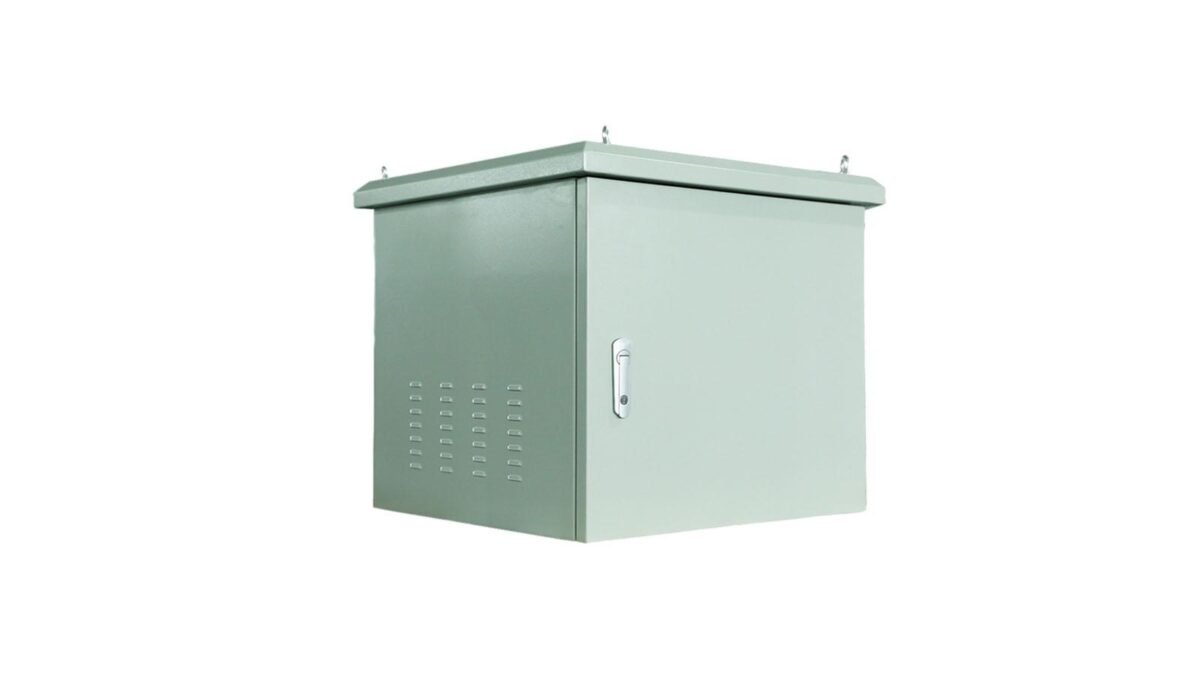

6U Outdoor Data Cabinet – 600x450x800 mm
The 6U Outdoor Data Cabinet is a compact, weather-sealed enclosure designed to protect critical network and telecom equipment in tight outdoor installations. With a depth of just 450 mm, this unit is ideal for locations where space is limited but robust environmental protection is required. Engineered from galvanized steel and finished with an outdoor-grade powder coating, the cabinet provides IP55-rated protection, efficient cooling, and secure locking—making it a perfect fit for small-scale networking, surveillance, and wireless access installations.
Product Features
Ultra-Compact Outdoor Design
With a 600 mm width and a shallow 450 mm depth, this cabinet is perfect for areas with limited space such as wall bases, narrow walkways, or pole-mounted setups.
IP55-Rated Environmental Protection
Offers complete protection against dust ingress and low-pressure water jets, ensuring reliable equipment operation in harsh outdoor conditions.
6U Rack Capacity
Provides 6 rack units of standard 19-inch mounting space, ideal for compact switches, routers, patch panels, and low-profile power systems.
Heavy-Duty Galvanized Steel Construction
Built with corrosion-resistant galvanized steel and finished with a UV-stable powder coating for durability in high-temperature or coastal environments.
Built-In Cooling System
Fitted with two 120 mm exhaust fans to manage airflow and prevent overheating of internal equipment.
Three-Point Locking System
Secures the front access door with a robust three-point lock and padlock-ready handle to prevent unauthorized access.
Weather-Sealed Cable Entry
Top and bottom cable access points are sealed with rubber grommets, preserving the IP rating while allowing for clean and organized cabling.
Product Specifications
- Rack Units: 6U
- External Dimensions: 370 mm (H) x 600 mm (W) x 450 mm (D)
- Rack Width: Standard 19-inch
- Material: Galvanized steel with powder-coated outdoor finish
- Protection Rating: IP55 (dust and water resistant)
- Cooling: Two pre-installed 120 mm exhaust fans
- Load Capacity: Up to 150 kg
- Mounting Rails: Adjustable front and rear rack rails
- Cable Entry: Top and bottom sealed access ports with rubber grommets
- Locking System: Three-point locking with padlock-ready handle
- Ventilation: Louvered vents with internal filters
- Color: Light gray (RAL 7035)
- Grounding: Integrated grounding points
- Installation: Free-standing or wall-mounted with optional plinth
