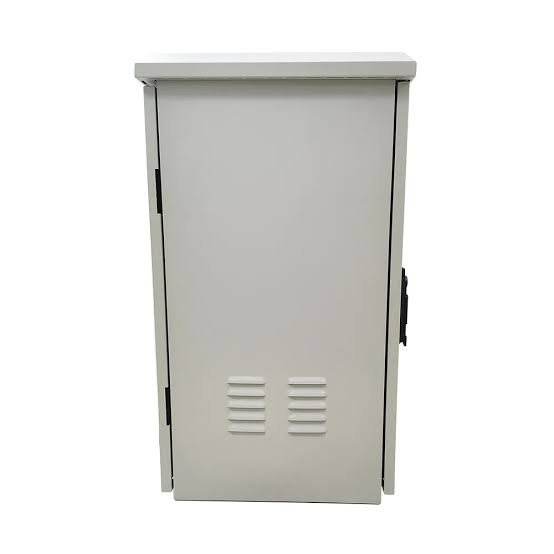

45U Outdoor Data Cabinet – 2100x660x660 mm

The 45U Outdoor Data Cabinet is a high-capacity, weather-resistant enclosure designed to protect critical IT and telecommunications equipment in challenging outdoor environments. With a sturdy galvanized steel frame and a compact depth of 660 mm, this cabinet offers ample vertical rack space while saving floor space in tight installations. Its IP55-rated design, efficient cooling system, and secure locking mechanisms ensure reliable performance and equipment protection in telecom towers, industrial sites, and remote outdoor deployments.

Product Features

Large Rack Capacity

Offers 45U of vertical rack space in a standard 19-inch format, suitable for servers, switches, power supplies, and other rack-mount equipment.

Weatherproof Design

Constructed to meet IP55 standards, providing protection against dust, rain, and water jets to maintain equipment integrity outdoors.

Durable Steel Construction

Made from galvanized steel with an outdoor-grade powder coating that resists corrosion, UV exposure, and harsh weather conditions.

Efficient Cooling System

Includes two pre-installed 120 mm exhaust fans for effective ventilation and heat dissipation, with options for additional cooling solutions.

Secure Locking Mechanism

Features three-point locking on front and rear doors to prevent unauthorized access and ensure equipment security.

Cable Management

Equipped with sealed cable entry points at the top and bottom, allowing for organized and protected cable routing.

UV and Corrosion Resistant Finish

The powder-coated finish protects the cabinet against sun damage and corrosion, ideal for coastal and industrial environments.

Product Specifications

• Rack Units: 45U
• External Dimensions: 2100 mm (H) x 660 mm (W) x 660 mm (D)
• Rack Width: Standard 19-inch
• Material: Galvanized steel with powder-coated outdoor finish
• Protection Rating: IP55 (dust and water resistant)
• Cooling: Two pre-installed 120 mm exhaust fans
• Load Capacity: Up to 1000 kg
• Mounting Rails: Adjustable front and rear rails
• Cable Entry: Sealed top and bottom entry points
• Locking System: Three-point locking with padlock compatibility
• Ventilation: Louvered vents with dust and insect filters
• Color: Light gray (RAL 7035)
• Grounding: Integrated grounding points
• Installation: Floor standing with optional base or plinth
