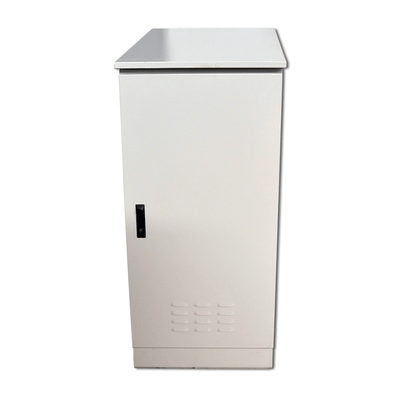

32U Outdoor Data Cabinet – 1670x660x800 mm

The 32U Outdoor Data Cabinet is a reliable, weatherproof enclosure designed to secure essential IT and telecom equipment in challenging outdoor conditions. Featuring a robust galvanized steel frame and a compact 800 mm depth, this cabinet offers efficient use of space without compromising capacity or protection. Its IP55-rated design, effective cooling system, and secure locking mechanisms make it an ideal choice for remote sites, industrial applications, and outdoor network infrastructure.

Product Features

Durable Outdoor Construction

Constructed from galvanized steel with a corrosion-resistant powder coating to withstand harsh weather, UV exposure, and environmental contaminants.

IP55 Weatherproof Rating

Ensures protection against dust ingress and water jets, maintaining optimal performance for sensitive equipment in outdoor settings.

32U Rack Capacity

Offers 32U of vertical rack space compatible with standard 19-inch rack equipment such as switches, servers, and power units.

Active Cooling System

Includes dual 120 mm exhaust fans for ventilation, with options to add further cooling solutions for enhanced thermal management.

Enhanced Security

Equipped with three-point locking systems on both front and rear doors to prevent unauthorized access and protect valuable assets.

Efficient Cable Management

Features sealed cable entry points at the top and bottom, plus adjustable internal rails for organized equipment installation and wiring.

UV and Corrosion Resistant Finish

The powder-coated surface resists UV rays and corrosion, making the cabinet suitable for coastal and industrial environments.

Product Specifications

• Rack Units: 32U
• External Dimensions: 1670 mm (H) x 660 mm (W) x 800 mm (D)
• Rack Width: Standard 19-inch
• Material: Galvanized steel with outdoor-grade powder coating
• Protection Rating: IP55 (dust and water resistant)
• Cooling: Two 120 mm exhaust fans pre-installed
• Load Capacity: Up to 800 kg
• Mounting Rails: Adjustable front and rear rails
• Cable Entry: Top and bottom sealed entry points
• Locking System: Three-point locking with padlock compatibility
• Ventilation: Louvered vents with internal insect filters
• Color: Light gray (RAL 7035)
• Grounding: Integrated grounding points
• Installation: Floor standing with optional base or plinth
