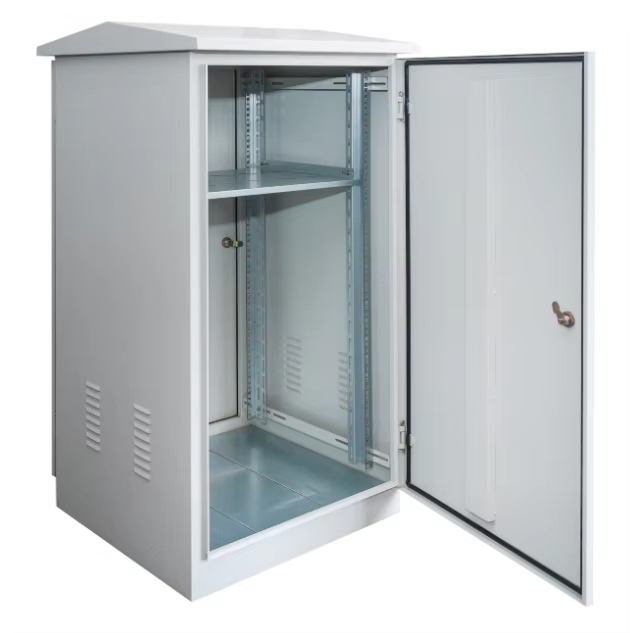

22U Outdoor Data Cabinet – 600x660x800 mm
The 22U Outdoor Data Cabinet is a compact, weatherproof solution built to protect essential IT and telecommunications equipment in harsh outdoor conditions. Designed for durability, this enclosure is constructed from galvanized steel with a corrosion-resistant powder coating and features IP55-rated environmental protection. With 22U of rack space, efficient cooling, and secure access, it is ideal for outdoor installations at telecom sites, industrial facilities, or smart infrastructure hubs where reliability is critical.
Product Features
Durable Outdoor Construction
Made from galvanized steel with a UV-resistant, powder-coated finish to withstand weather, corrosion, and long-term exposure.
IP55-Rated Protection
Provides protection against dust ingress and low-pressure water jets, ensuring reliable operation in demanding outdoor settings.
22U Standard Rack Space
Offers 22U of standard 19-inch rack space, suitable for housing networking equipment, power distribution units, and telecom systems.
Integrated Cooling System
Equipped with two 120 mm exhaust fans for airflow and heat management, with optional expansion for advanced cooling needs.
Enhanced Security
Front and rear doors feature a three-point locking system designed to prevent unauthorized access and secure high-value equipment.
Weather-Sealed Cable Access
Top and bottom cable entry points are fitted with weatherproof grommets to maintain the cabinet’s environmental seal while managing cabling.
UV and Corrosion Resistance
Outdoor-rated powder coating ensures resistance to UV radiation and corrosion, ideal for deployment in coastal and industrial zones.
Product Specifications
- Rack Units: 22U
- External Dimensions: 600 mm (H) x 660 mm (W) x 800 mm (D)
- Rack Width: Standard 19-inch
- Material: Galvanized steel with outdoor-grade powder coating
- Protection Rating: IP55 (dust and water resistant)
- Cooling: Two pre-installed 120 mm exhaust fans
- Load Capacity: Up to 600 kg
- Mounting Rails: Adjustable front and rear rails
- Cable Entry: Top and bottom sealed entry points
- Locking System: Three-point locking with padlock compatibility
- Ventilation: Louvered vents with insect and dust filters
- Color: Light gray (RAL 7035)
- Grounding: Built-in grounding points
- Installation: Floor standing with optional plinth or mounting base
