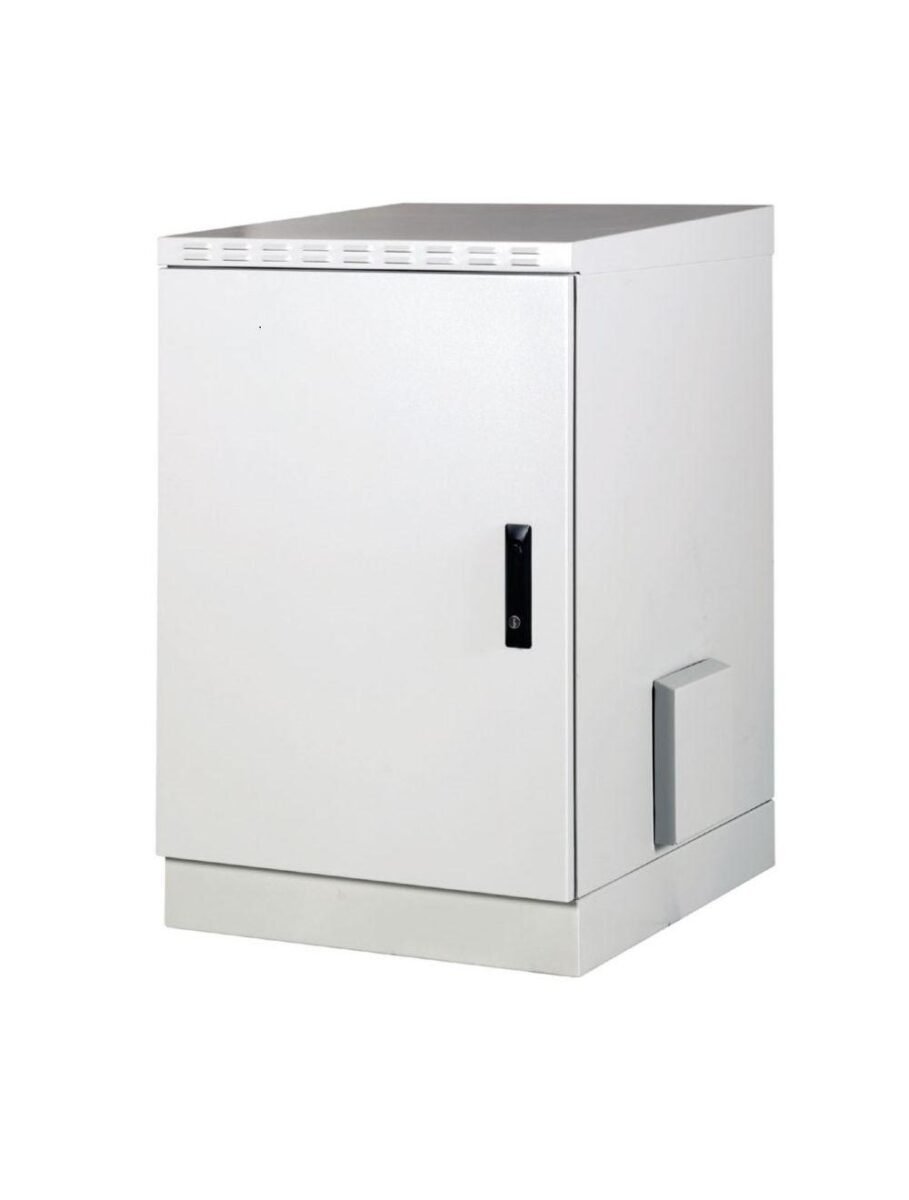

12U Outdoor Data Cabinet – 600x600x800 mm

The 12U Outdoor Data Cabinet is a compact, weather-resistant enclosure designed to securely house IT and telecommunications equipment in demanding outdoor environments. Measuring 600 mm wide by 600 mm deep, this cabinet provides an ideal solution for installations where space is limited, but equipment still requires reliable protection from the elements. Built with galvanized steel and finished with an outdoor-grade powder coating, the enclosure delivers IP55-rated protection, effective airflow management, and a secure locking system—ideal for telecom, surveillance, and edge network applications.

Product Features

Compact and Space-Efficient

With a small 600×600 mm footprint, this cabinet is perfect for locations with space constraints, such as wall bases, roadside installations, or perimeter network points.

IP55 Rated for Outdoor Protection

Engineered to withstand dust, rain, and water jets, this enclosure ensures continuous operation of sensitive equipment in harsh outdoor conditions.

12U Rack Mounting Space

Accommodates 12U of standard 19-inch rack-mountable equipment, including switches, routers, NVRs, and power systems.

Rugged Steel Construction

Built from galvanized steel with a UV-stable powder-coated finish, offering superior corrosion and weather resistance for long-term durability.

Integrated Ventilation System

Two pre-installed 120 mm exhaust fans ensure proper airflow and prevent overheating in high-temperature outdoor settings.

Secure Three-Point Locking

Both front and rear access doors include a robust three-point locking mechanism with padlock compatibility, protecting equipment from unauthorized access.

Weather-Sealed Cable Entry

Cable entry points at the top and bottom are fitted with rubber grommets to maintain environmental sealing while allowing organized cable management.

Product Specifications

• Rack Units: 12U
• External Dimensions: 600 mm (H) x 600 mm (W) x 800 mm (D)
• Rack Width: Standard 19-inch
• Material: Galvanized steel with powder-coated finish
• Protection Rating: IP55 (dust and water resistant)
• Cooling: Two pre-installed 120 mm exhaust fans
• Load Capacity: Up to 300 kg
• Mounting Rails: Adjustable front and rear rails
• Cable Entry: Sealed top and bottom with rubber grommets
• Locking System: Three-point locking system with padlock-ready handles
• Ventilation: Louvered vents with dust and insect filters
• Color: Light gray (RAL 7035)
• Grounding: Integrated grounding points
• Installation: Free-standing with optional plinth
