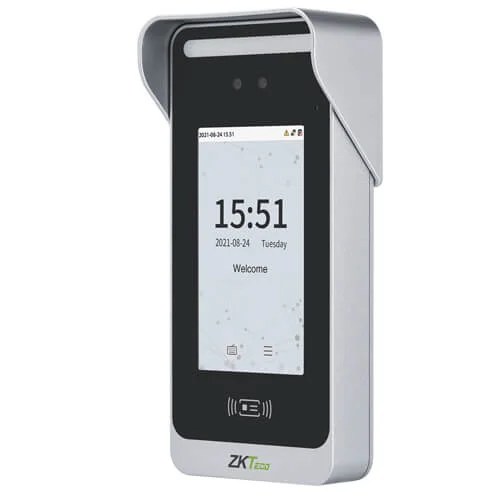

ZKTeco SpeedFace M4 Outdoor Multi-Biometric Access Control and Time Attendance Terminal

The ZKTeco SpeedFace M4 is a Linux-based, multi-biometric terminal designed for outdoor access control and time attendance applications. Featuring visible light facial recognition, palm recognition, and optional card and password authentication, it offers a versatile and secure solution for various environments. With an IP66 rating, it is built to withstand harsh weather conditions, making it ideal for both indoor and outdoor installations.

Product Features

Visible Light Facial Recognition

Utilizes advanced visible light facial recognition technology to accurately identify individuals, even in low-light conditions.

Anti-Spoofing Algorithm

Equipped with an anti-spoofing algorithm to prevent unauthorized access through photos, videos, or 3D masks.

Multi-Verification Methods

Supports multiple verification methods, including face, palm, card, and password, providing flexible access control options.

High Capacity

Stores up to 6,000 face templates, 3,000 palm templates, 10,000 cards, and 200,000 transaction logs, accommodating large user bases.

IP66 Protection Rating

Offers an IP66 rating, ensuring the terminal is dust-tight and protected against powerful water jets, suitable for outdoor environments.

5-Inch Touch Screen

Features a 5-inch touch screen for easy navigation and user interaction.

Adjustable LED Supplement Light

Includes an adjustable LED supplement light to enhance facial recognition accuracy in varying lighting conditions.

Optional Card Modules

Supports various card modules, including ID, IC, HID, iClass, Felica, Desfire EV1/EV2, and Legic, for versatile access control.

Product Specifications

• Face Capacity: 6,000 (Optional: 10,000)

• Palm Capacity: 3,000 (Customized)

• Card Capacity: 10,000

• Transaction Capacity: 200,000 (Optional: 500,000)

• Operating System: Linux

• Display: 5-inch Touch Screen

• Biometric Algorithms: ZKFace V5.8 & ZKPalm V12.0

• Facial Recognition Speed: ≤ 0.5s per face

• Communication: TCP/IP, Wi-Fi (Optional), Wiegand Input/Output, RS485

• Power Supply: DC 12V, Max. 3A

• Operating Temperature: -30°C to 60°C

• Operating Humidity: 10% to 90%

• Ingress Protection Rating: IP66

• Dimensions (W×H×D): 103.83 × 212.41 × 50.60 mm

• Supported Software: ZKBio CVAccess
