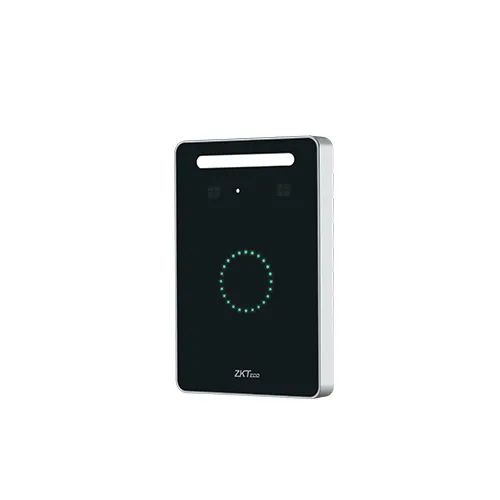

ZKTeco KF1100 Visible Light Facial Recognition and RFID Reader

The ZKTeco KF1100 is a compact visible light facial recognition and RFID reader designed for secure access control in modern indoor environments. It delivers fast and touchless user authentication in less than 0.3 seconds, with enhanced accuracy under various lighting conditions. This device supports multiple authentication methods, including facial recognition and RFID cards, and can operate as a standalone unit or be integrated with ZKTeco inBio Pro Plus controllers. Ideal for workplaces, schools, hospitals, and server rooms, the KF1100 offers reliable performance, user-friendly configuration, and cybersecurity compliance in a sleek wall-mounted design.

Product Features

Visible Light Facial Recognition

Powered by ZKFace version 3.5 algorithm, the device performs fast facial recognition with a detection range of 30 to 50 centimeters and supports recognition even in ambient lighting up to 2,000 lux.

RFID and IC Card Compatibility

Supports 125 kHz RFID ID cards by default, with optional support for 13.56 MHz IC cards, allowing flexible authentication methods.

Dual Mode Operation

Can function in two configurations:

• As a face reader in combination with inBio Pro Plus panels via TCP/IP and RS-485

• In standalone mode when used with auxiliary DM10 controller

Fast and Accurate Performance

Facial verification takes less than 0.3 seconds per user, with high accuracy and low false acceptance and rejection rates.

Multiple Communication Options

Supports TCP/IP, Wiegand output (26/34/36/37/50 bit), optional RS-485, and optional Wi-Fi (802.11 a/b/g/n) for flexible system integration.

Embedded Web Server

Includes a built-in web interface for convenient system configuration without the need for additional software.

Cybersecurity Protection

Complies with ZKTeco’s cybersecurity baseline standards to safeguard biometric data, communications, and system integrity.

Compact and Durable Design

Features a slim aluminum alloy enclosure for indoor wall-mount installation. Designed to fit standard Asian gang boxes for quick and secure mounting.

Product Specifications

• Biometric method: visible light facial recognition

• Facial recognition algorithm: ZKFace version 3.5

• Recognition speed: less than 0.3 seconds

• Recognition range: 30 to 50 cm

• Lighting tolerance: up to 2,000 lux

• Face template capacity:

  • 3,000 when used with inBio Pro Plus

  • 1,500 in standalone mode

• Card capacity:

  • 100,000 when connected to inBio Pro Plus

  • 30,000 in standalone mode

• Event log capacity: 100,000

• Authentication methods: face, RFID ID card (125 kHz), optional IC card (13.56 MHz)

• CPU: 1.2 GHz dual-core

• RAM: 256 MB

• ROM: 512 MB

• Operating system: Linux

• Communication: TCP/IP, Wiegand, optional RS-485, optional Wi-Fi

• Power supply: 12 V DC, max 500 mA

• Operating temperature: –10°C to 50°C

• Storage temperature: –20°C to 60°C

• Humidity: 10% to 90% non-condensing

• Dimensions: 91 mm × 91 mm × 13.8 mm

• Net weight: approximately 0.27 kg

• Gross weight: approximately 0.36 kg

• Mounting method: wall-mounted, compatible with Asian gang box

• Housing material: aluminum alloy

• Installation environment: indoor use only

• Certifications: ISO9001, ISO14001, CE, FCC, RoHS

• Compatible software: ZKBio Access IVS, ZKBio CVSecurity
