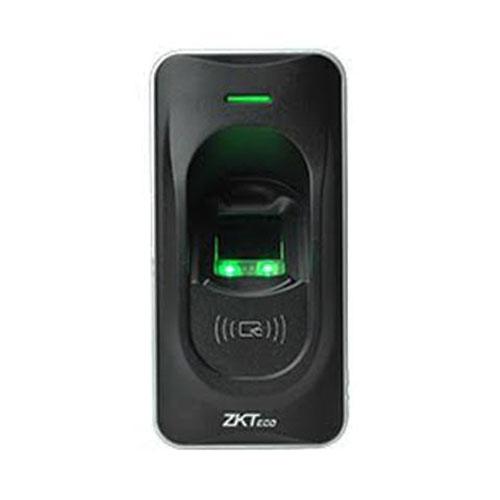

ZKTeco FR1500S+ ID Fingerprint Reader with RS485 Interface

The ZKTeco FR1500S+ ID is a robust fingerprint and ID card reader designed for secure and adaptable access control. Combining swift biometric recognition with RFID verification and RS485 communication, this compact unit fits into standard single‑gang junction boxes. It’s ideal for residential, commercial, or industrial entry systems, delivering reliable performance and easy installation in a small form factor.

Product Features

Dual-Mode Authentication

Supports both fingerprint recognition and 125 kHz ID card verification, enabling multi-factor security and operational flexibility.

Fast Recognition Speed

Fingerprint detection occurs in under 0.5 seconds; ID cards are validated in under 0.2 seconds, ensuring efficient user access.

RS485 Communication

Offers a stable and noise-resistant RS485 channel for reliable data transfer over long cable distances, suitable for centralized system integration.

Compact Single-Gang Design

Designed to mount in a standard single-gang junction box, providing a clean, discreet and professional installation.

Durable Build

Encased in rugged ABS material with an IP54 rating for dust and splash protection, suitable for indoor and sheltered outdoor environments.

User Feedback Interface

Equipped with multi-color LED indicators and audio beeps to signal power, waiting, access granted, denied, and error states.

Local Data Storage

Can store up to 1,500 fingerprint templates and 2,000 ID card records, ensuring continued operation in offline or network-separated modes.

Product Specifications

• Model: FR1500S+ ID

• Authentication methods: Fingerprint, 125 kHz ID card

• Fingerprint capacity: Up to 1,500 templates

• Card capacity: Up to 2,000 records

• Verification time: Fingerprint < 0.5 seconds; Card < 0.2 seconds

• Communication interface: RS485, Wiegand output

• Power input: 12 V DC (±10%)

• Operating current: Standby ~100 mA; Active ~250 mA

• Mounting type: Single-gang junction box

• Protection rating: IP54 (dust and splash resistant)

• LED feedback: Multi-color indicators for status notifications

• Audio feedback: Beep tones for acceptance, rejection, and errors

• Operating temperature: 0 °C to 45 °C

• Operating humidity: 20% to 80% RH (non-condensing)

• Dimensions: ~86 × 86 × 35 mm

• Housing material: ABS plastic
