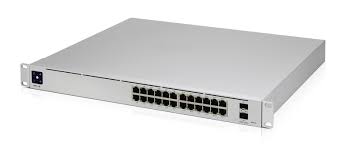

Ubiquiti UniFi Enterprise 24 PoE Managed switch – USW-ENTERPRISE-24-POE

Ubiquiti UniFi Switch Enterprise USW-Enterprise-24-PoE is a powerful managed Layer 3 switch, perfectly suited for modern networking needs.

With a versatile port configuration, it features twelve 2.5G RJ45 ports and twelve Gigabit RJ45 ports, both equipped with PoE+, allowing for seamless connectivity and power delivery to your WiFi 6 access points.

Features

• 12 x 2.5G RJ45 Ports: Equipped with PoE+ (802.3af/at) for efficient power delivery to devices such as WiFi 6 access points.
• 12 x Gigabit RJ45 Ports: Also supports PoE+, ensuring that all your essential devices stay powered.
• Two 10G SFP+ Ports: For high-capacity fiber uplinks, facilitating fast and reliable network connections.
• 400W Total PoE Capacity: Sufficient power to support multiple devices while maintaining performance.
• 1.3″ Touchscreen Display: Provides intuitive AR switch management for easy configuration and monitoring.
• UniFi SmartPower RPS Support: Integrates with the UniFi SmartPower Redundant Power System for additional reliability during power interruptions.
• Managed with UniFi Network Application: Access management via the web or mobile app (version 5.14.12 or higher).

Specifications

• Mechanical Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″)
• Weight:
  • Without Mount: 5.11 kg (11.27 lb)
  • With Mount: 5.2 kg (11.46 lb)
• Enclosure Material: SGCC Steel
• Hardware:
  • Total Non-Blocking Throughput: 62 Gbps
  • Switching Capacity: 124 Gbps
  • Forwarding Rate: 92.25 Mpps
  • Max. Power Consumption: 550W
• Power Method:
  • Universal AC Input: 100-240VAC, 50/60 Hz
  • USP-RPS DC Input: 52VDC, 7.7A; 11.5VDC, 8.7A
  • Power Supply: AC/DC, Internal, 550W
• Management Interface: Ethernet In-Band
• Networking Interfaces:
  • 12 x 10/100/1000 Mbps RJ45 Ethernet
  • 12 x 100/1000/2500 Mbps RJ45 Ethernet
• SFP+ Interfaces: 2 x 1/10G SFP+
• PoE Interfaces: 24 x PoE+ (IEEE 802.3af/at)
  • Max. PoE+ Wattage per Port: 34.2W
  • Voltage Range 802.3af Mode: 44 to 57V
  • Voltage Range 802.3at Mode: 50 to 57V
