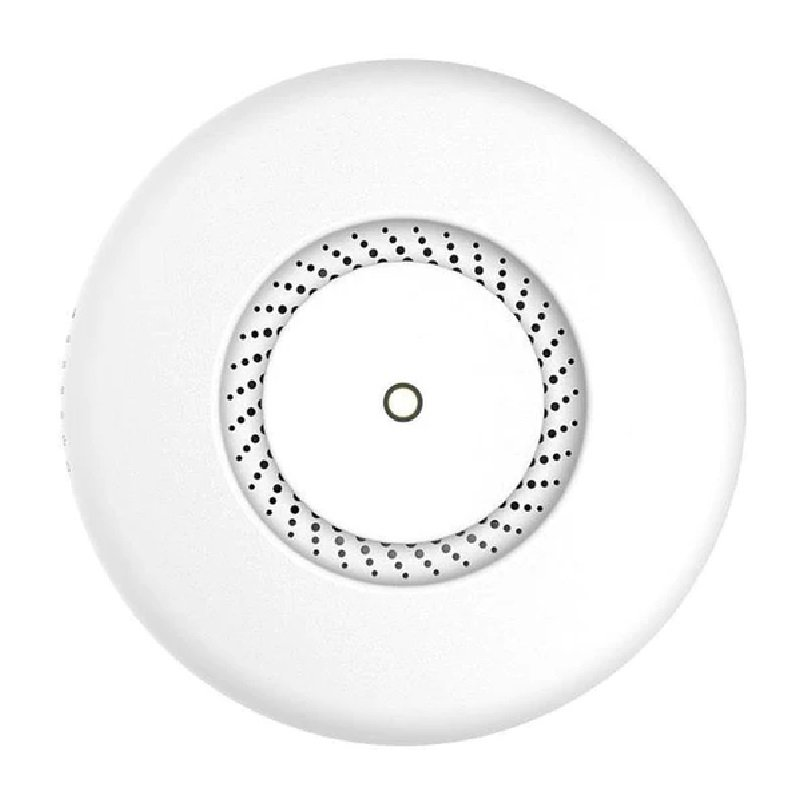

MikroTik RouterBOARD Ceiling Access Point – cAP-2nD

The cAP-2nD ceiling Access Point is the first 2.4GHz Dual-Chain ceiling AP which is designed for hospitality business like hotels, airports, shopping malls etc.

The cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

Specifications

• Product code     RBcAP2nD
• Architecture       MIPSBE
• CPU       QCA9533
• CPU core count 1
• CPU nominal frequency 650 MHz
• Dimensions        185mm diameter, 31mm height
• RouterOS license              4
• Operating System            RouterOS
• Size of RAM        64 MB
• Storage size        16 MB
• Storage type      FLASH
• MTBF    Approximately 100’000 hours at 25C
• Tested ambient temperature     -40°C to 70°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate 300 Mbit/s
• Wireless 2.4 GHz number of chains           2
• Wireless 2.4 GHz standards         802.11b/g/n
• Antenna gain dBi for 2.4 GHz      2
• Wireless 2.4 GHz chip model       QCA9533
• Wireless 2.4 GHz generation       Wi-Fi 4

Ethernet

• 10/100 Ethernet ports   1

Powering

• Number of DC inputs      1 (PoE-IN)
• Max power consumption              4 W
• Cooling type       Passive
• PoE in    802.3af/at
• PoE in input Voltage       11-57 V

Wireless specifications
