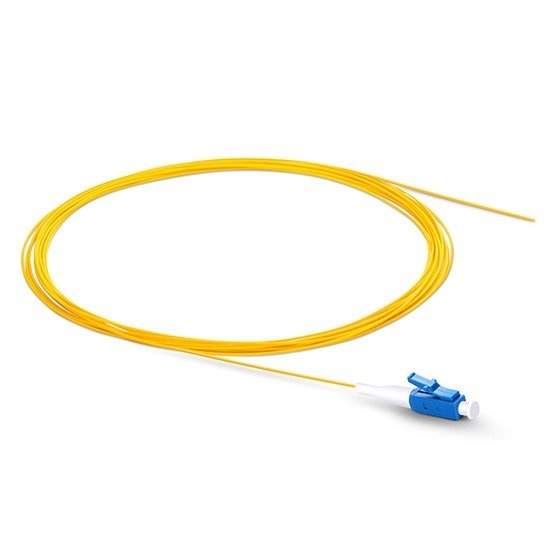

LC/UPC 20mtr Single Mode Pigtails

LC/UPC 20m Singlemode Fiber Optic Pigtail is a high-quality solution for splicing and termination in long-distance fiber optic networks. Equipped with factory-polished LC/UPC connectors, it delivers ultra-low insertion loss and excellent return loss. This pigtail is ideal for connecting singlemode fibers in ODFs, patch panels, and telecommunication enclosures where an extended reach is necessary.

Product Features

High-Precision LC/UPC Connectors

Factory-terminated LC/UPC connectors provide reliable, low-loss connections with superior optical performance.

Singlemode Fiber Capability

Designed for high-speed, long-distance signal transmission with minimal attenuation.

Extended 20m Length

Provides added flexibility and reach for large installations or widely spaced equipment.

Durable LSZH Jacket

Low Smoke Zero Halogen jacket ensures safety, flexibility, and protection during demanding installations.

Easy Integration

Engineered for quick splicing and termination into patch panels, enclosures, and fiber management systems.

Product Specifications

• Connector Type: LC/UPC
• Fiber Type: Singlemode
• Cable Length: 20 meters
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥55 dB
• Outer Jacket: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: –20 °C to +70 °C
